AD5620ARJ-2500RL7 - Analog Devices

Description: nanoDAC with 5 ppm/°C On-Chip Reference in SOT-23

Download AD5620ARJ-2500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

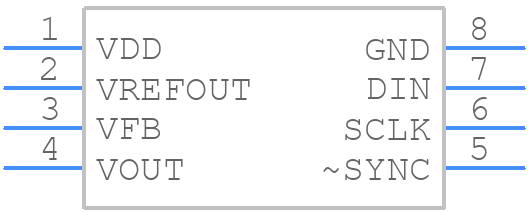

AD5620ARJ-2500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5620ARJ-2500RL7 - Analog Devices PCB footprint - Other - Other - SOT65P280X145-8N
click to zoom
3D Models
AD5620ARJ-2500RL7 - Analog Devices - 3D model - Other - SOT65P280X145-8N
click to zoom

AD5620ARJ-2500RL7 Details

  • Manufacturer Part Number:

    AD5620ARJ-2500RL7

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.1465%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD5620ARJ-2500RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly initialized and avoids any potential latch-up or damage to the device.
  • To ensure accurate voltage output, it is essential to use a high-accuracy voltage reference (VREF) and to minimize noise on the VREF pin. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects, and the output capacitor should be carefully selected to minimize settling time and oscillations.
  • The AD5620ARJ-2500RL7 can supply up to 5 mA of output current. However, it is recommended to limit the output current to 2 mA or less to ensure accurate voltage output and to prevent overheating of the device.
  • The AD5620ARJ-2500RL7 can be interfaced with a microcontroller using a serial interface (SPI or I2C). The microcontroller should provide a clock signal, chip select signal, and data signals to the AD5620ARJ-2500RL7. The interface should be designed to minimize noise and ensure reliable data transfer.
  • The AD5620ARJ-2500RL7 is a high-power device and requires proper thermal management to prevent overheating. A heat sink or thermal pad should be used to dissipate heat, and the device should be mounted on a PCB with good thermal conductivity. The operating temperature range should be limited to -40°C to +125°C to ensure reliable operation.
