AD5620ARJZ-2REEL7 - Analog Devices

Description: nanoDAC with 5 ppm/°C On-Chip Reference in SOT-23

Download AD5620ARJZ-2REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

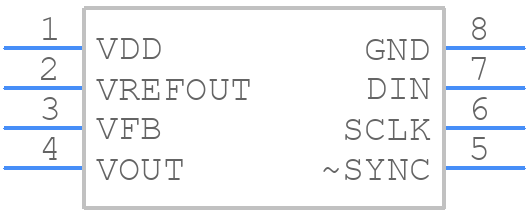

AD5620ARJZ-2REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5620ARJZ-2REEL7 - Analog Devices PCB footprint - Other - Other - SOT65P280X145-8N
click to zoom
3D Models
AD5620ARJZ-2REEL7 - Analog Devices - 3D model - Other - SOT65P280X145-8N
click to zoom

AD5620ARJZ-2REEL7 Details

  • Manufacturer Part Number:

    AD5620ARJZ-2REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.1465%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD5620ARJZ-2REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence for the AD5620 is to power up VDD first, followed by AVCC, and then the digital interface (SCL and SDA). This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output from the AD5620, it is essential to use a high-quality external reference voltage source, and to decouple the power supplies (VDD and AVCC) with suitable capacitors. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The AD5620's output can drive a maximum capacitance of 1nF. Exceeding this capacitance may cause instability or oscillations in the output voltage.
  • To implement a voltage clamp or limit on the AD5620's output, an external voltage clamp circuit can be used. This typically consists of a zener diode or a voltage regulator connected in series with the output, to limit the voltage to a specific maximum value.
  • The recommended layout and routing for the AD5620's PCB design involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the traces between the AD5620 and the external reference voltage source. Additionally, the power supplies (VDD and AVCC) should be decoupled with suitable capacitors.
