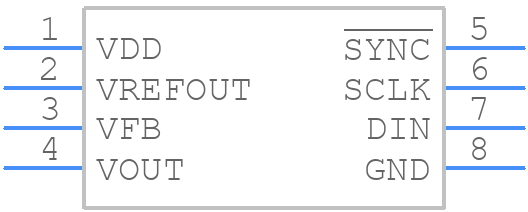

AD5620BRJZ-2REEL7 - Analog Devices

AD5620BRJZ-2REEL7 Details

• Manufacturer Part Number:

  AD5620BRJZ-2REEL7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

• Pin Count:

  8

• Manufacturer Package Code:

  RJ-8

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Output Voltage-Max:

  5.5 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  2.9 mm

• Linearity Error-Max (EL):

  0.0244%

• Moisture Sensitivity Level:

  1

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Equivalence Code:

  TSSOP8,.1

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.45 mm

• Settling Time-Max:

  10 µs

• Settling Time-Nom (tstl):

  8 µs

• Supply Current-Max:

  1 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.6 mm
