AD5624BRMZ - Analog Devices

Description: AD5624BRMZ, 12-Bit 12 Bit DAC Quad 287ksps, SPI, Microwire, 10-Pin MSOP

Download AD5624BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

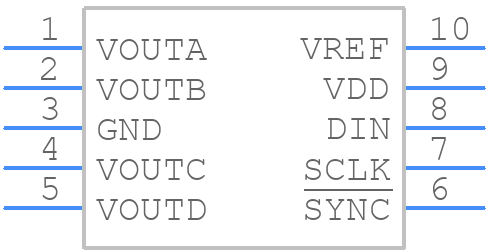

AD5624BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5624BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD5315ARMZ
click to zoom
3D Models
AD5624BRMZ - Analog Devices - 3D model - Small Outline Packages - AD5315ARMZ
click to zoom

AD5624BRMZ Details

  • Manufacturer Part Number:

    AD5624BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    4.5 µs

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD5624BRMZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C) can be initialized. This ensures that the internal voltage regulators are properly powered up before the digital interface is enabled.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The AD5624BRMZ can drive capacitive loads up to 1 μF. However, it is recommended to limit the capacitance to 100 nF or less to ensure stability and prevent oscillations.
  • The POR and BOR functions are enabled by default. To handle these functions, ensure that the power supply ramps up slowly (typically 1 ms to 10 ms) to prevent false triggering of the POR and BOR circuits.
  • To minimize thermal resistance and ensure proper heat dissipation, it is recommended to use a 4-layer PCB with a solid ground plane, and to place the device near a thermal pad or heat sink. Additionally, ensure that the device is not exposed to excessive temperatures during reflow soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5624BRMZ Overview

Use the download button to access the AD5624BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD562, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
