AD5625BCPZ-R2 - Analog Devices

Description: Digital to Analog Converters - DAC IC 12-Bit I2C Interface

Download AD5625BCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

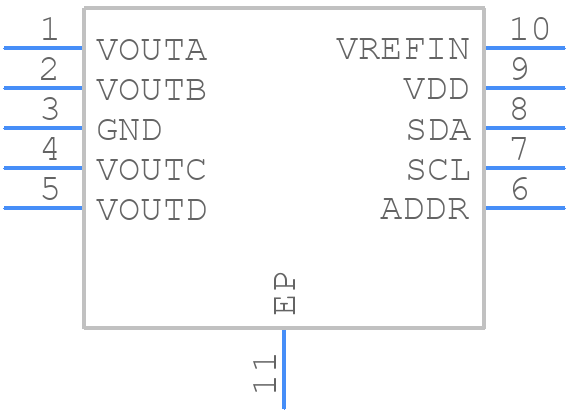

AD5625BCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5625BCPZ-R2 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9
click to zoom
3D Models
AD5625BCPZ-R2 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9
click to zoom

AD5625BCPZ-R2 Details

  • Manufacturer Part Number:

    AD5625BCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    4.5 µs

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    1.16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD5625BCPZ-R2 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface (e.g., SPI or I2C). This ensures that the internal reference is stable before the DAC starts operating.
  • To minimize output voltage glitches during power-up or power-down, it is recommended to use an external output buffer or op-amp to filter the output voltage. Additionally, the power-up and power-down sequences should be controlled to minimize the glitch duration.
  • The AD5625 can drive up to 5mA of output current. However, it is recommended to limit the output current to 2mA or less to ensure accurate voltage output and to prevent overheating.
  • The AD5625 has an internal calibration circuit that can be used to calibrate the device for optimal performance. The calibration process involves writing specific codes to the device's registers to adjust the gain and offset of the DAC. Refer to the datasheet for detailed calibration procedures.
  • The AD5625's performance is affected by temperature, with changes in temperature causing changes in the output voltage. The device has a specified temperature coefficient of ±3ppm/°C, which means that the output voltage will change by ±3ppm for every degree Celsius change in temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5625BCPZ-R2 Overview

Use the download button to access the AD5625BCPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD562, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
