AD5629RBCBZ-1-RL7 - Analog Devices

Description: DAC 8-CH Resistor-String 12-bit 16-Pin WLCSP T/R

Download AD5629RBCBZ-1-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

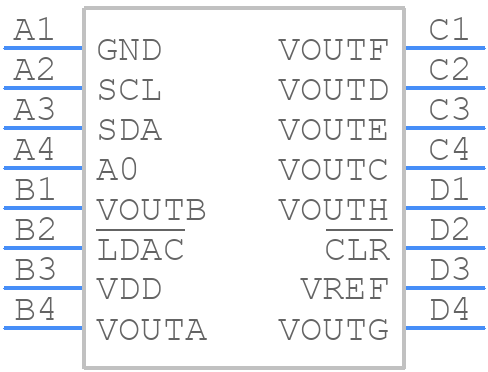

Symbol
AD5629RBCBZ-1-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5629RBCBZ-1-RL7 - Analog Devices PCB footprint - BGA - BGA - CB-16-16
click to zoom
3D Models
AD5629RBCBZ-1-RL7 - Analog Devices - 3D model - BGA - CB-16-16
click to zoom

AD5629RBCBZ-1-RL7 Details

  • Manufacturer Part Number:

    AD5629RBCBZ-1-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:13.924

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CB-16-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.605 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.65 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.605 mm

AD5629RBCBZ-1-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C). This ensures proper device initialization and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to follow proper layout and decoupling guidelines, use a stable reference voltage, and minimize noise on the power supplies. Additionally, calibrate the device using the internal calibration feature or an external calibration method.
  • The maximum capacitance on the output of the AD5629RBCBZ-1-RL7 is 10 nF. Exceeding this value may cause stability issues or oscillations. If a larger capacitance is required, consider using an output buffer or a dedicated op-amp.
  • Yes, the AD5629RBCBZ-1-RL7 can be used in a ratiometric configuration, where the reference voltage is derived from the power supply. However, this requires careful consideration of the power supply noise and regulation to ensure accurate voltage output.
  • To handle thermal considerations, ensure good thermal conduction from the device to the PCB or a heat sink. Keep the device away from heat sources, and avoid blocking airflow around the device. Monitor the junction temperature (TJ) to prevent overheating, which can affect device performance and reliability.
