AD5660ARJ-2500RL7 - Analog Devices

Description: nanoDAC with 5 ppm/°C On-Chip Reference in SOT-23

Download AD5660ARJ-2500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

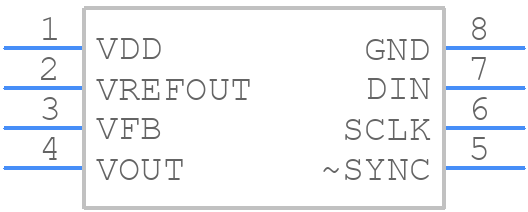

Symbol
AD5660ARJ-2500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5660ARJ-2500RL7 - Analog Devices PCB footprint - Other - Other - SOT65P280X145-8N
click to zoom
3D Models
AD5660ARJ-2500RL7 - Analog Devices - 3D model - Other - SOT65P280X145-8N
click to zoom

AD5660ARJ-2500RL7 Details

  • Manufacturer Part Number:

    AD5660ARJ-2500RL7

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD5660ARJ-2500RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, calibrate the device using the internal calibration feature or an external calibration method.
  • The AD5660ARJ-2500RL7 can drive capacitive loads up to 1 μF. However, it is recommended to limit the capacitance to 100 nF or less to ensure stability and prevent oscillations.
  • Yes, the AD5660ARJ-2500RL7 can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This is useful in applications where the output voltage needs to track changes in the reference voltage.
  • When the AD5660ARJ-2500RL7 is in power-down mode, the output voltage is disconnected from the output pin, and the device enters a low-power state. To handle power-down mode, ensure that the output pin is not loaded, and the device is properly powered down using the PD pin or the SPI interface.
