AD5660ARJ-3500RL7 - Analog Devices

Description: nanoDAC with 5 ppm/°C On-Chip Reference in SOT-23

Download AD5660ARJ-3500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

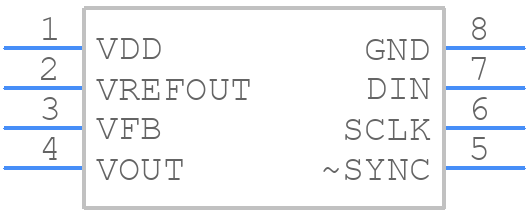

Symbol
AD5660ARJ-3500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5660ARJ-3500RL7 - Analog Devices PCB footprint - Other - Other - SOT65P280X145-8N
click to zoom
3D Models
AD5660ARJ-3500RL7 - Analog Devices - 3D model - Other - SOT65P280X145-8N
click to zoom

AD5660ARJ-3500RL7 Details

  • Manufacturer Part Number:

    AD5660ARJ-3500RL7

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD5660ARJ-3500RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize digital noise coupling into the analog output. Additionally, calibrate the device using the internal calibration feature or an external calibration circuit.
  • The AD5660ARJ-3500RL7 can drive capacitive loads up to 1 μF. However, it is recommended to limit the capacitance to 100 nF or less to ensure stability and prevent oscillations.
  • When powering down the AD5660ARJ-3500RL7, it is essential to follow the recommended power-down sequence to prevent any potential latch-up conditions. The device should be powered down by removing VDD first, followed by AVCC, and then the digital inputs.
  • The thermal impedance of the AD5660ARJ-3500RL7 package (QFN-40) is typically around 25°C/W. This value can be used to estimate the junction temperature of the device based on the power dissipation and ambient temperature.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD5660ARJ-3500RL7 Overview

Use the download button to access the AD5660ARJ-3500RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD566, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
