AD5660CRM-2 - Analog Devices

Description: AD5660CRM-2, 16-Bit 16 Bit DAC 125ksps, SPI, Microwire, 8-Pin MSOP

Download AD5660CRM-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

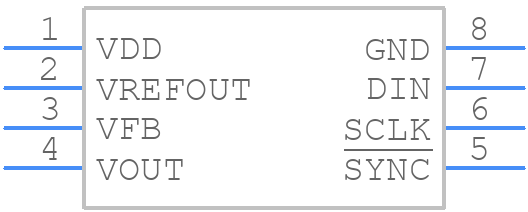

AD5660CRM-2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5660CRM-2 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-08
click to zoom
3D Models
AD5660CRM-2 - Analog Devices - 3D model - Small Outline Packages - RM-08
click to zoom

AD5660CRM-2 Details

  • Manufacturer Part Number:

    AD5660CRM-2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD5660CRM-2 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the digital inputs. This ensures that the internal circuitry is properly initialized and prevents any potential latch-up or damage to the device.
  • To ensure accurate voltage output, it is essential to use a high-quality reference voltage source, such as the ADR434 or ADR444, and to follow proper PCB layout and grounding techniques to minimize noise and interference. Additionally, the output voltage should be buffered with an op-amp, such as the OP184, to prevent loading effects.
  • The AD5660CRM-2 can drive capacitive loads up to 1nF. However, it is recommended to limit the capacitance to 100pF or less to ensure stability and prevent oscillations. If a larger capacitance is required, an external op-amp buffer should be used to isolate the load.
  • A voltage clamp or limit can be implemented using an external op-amp, such as the OP184, and a few resistors. The op-amp is configured as a comparator, and the output is limited to a specific voltage range by adjusting the resistor values. This prevents the output voltage from exceeding a certain level, which can be useful in applications where overvoltage protection is required.
  • The recommended layout and routing for the AD5660CRM-2 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the traces. The VDD and VSS pins should be decoupled with 0.1uF and 10uF capacitors, respectively, and the reference voltage input should be bypassed with a 10nF capacitor. Additionally, the output voltage should be routed away from the digital signals to prevent noise coupling.
