AD5664RBCPZ-3R2 - Analog Devices

Description: Digital to Analog Converters - DAC Quad 3V 16bit SPI DAC with reference

Download AD5664RBCPZ-3R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

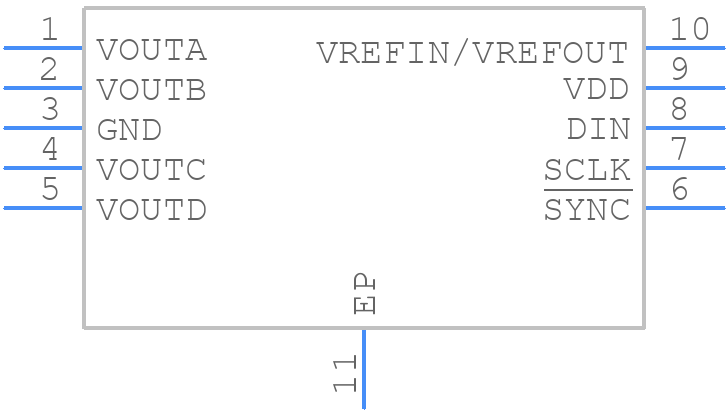

AD5664RBCPZ-3R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5664RBCPZ-3R2 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-10-9)
click to zoom
3D Models
AD5664RBCPZ-3R2 - Analog Devices - 3D model - Small Outline No-lead - (CP-10-9)
click to zoom

AD5664RBCPZ-3R2 Details

  • Manufacturer Part Number:

    AD5664RBCPZ-3R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    3.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD5664RBCPZ-3R2 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the digital inputs. This ensures that the internal circuitry is properly biased and configured before the digital inputs are applied.
  • To ensure accurate voltage output, it is essential to use a low-noise, low-impedance power supply, and to decouple the power pins with high-quality capacitors. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The AD5664RBCPZ-3R2 can drive capacitive loads up to 1nF. However, it is recommended to limit the capacitance to 100pF or less to ensure stability and prevent oscillations.
  • The AD5664RBCPZ-3R2 has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to provide adequate heat sinking and to keep the device away from heat sources. A thermal pad on the package bottom can be connected to a copper plane on the PCB to improve heat dissipation.
  • To minimize noise and ensure reliable operation, it is recommended to use a star-ground configuration, keep the analog and digital grounds separate, and use short, direct traces for the power and output pins. Additionally, avoid running digital traces near the analog output pins.
