AD5665RBCBZ-1-RL7 - Analog Devices

Description: ANALOG DEVICES - AD5665RBCBZ-1-RL7 - DAC, QUAD, 16BIT, WLCSP-12

Download AD5665RBCBZ-1-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

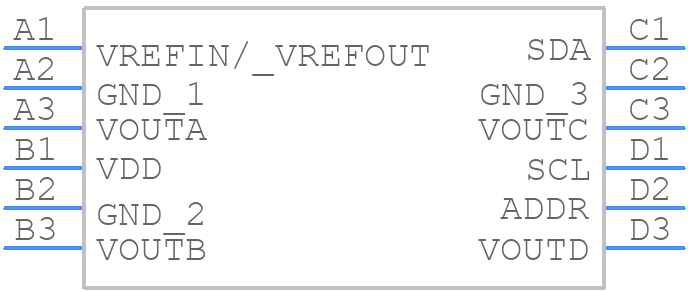

Symbol
AD5665RBCBZ-1-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5665RBCBZ-1-RL7 - Analog Devices PCB footprint - BGA - BGA - (CB-12-9)
click to zoom
3D Models
AD5665RBCBZ-1-RL7 - Analog Devices - 3D model - BGA - (CB-12-9)
click to zoom

AD5665RBCBZ-1-RL7 Details

  • Manufacturer Part Number:

    AD5665RBCBZ-1-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CB-12-9

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    2.245 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.65 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    1.16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.665 mm

AD5665RBCBZ-1-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the digital inputs. This ensures that the internal circuitry is properly biased and configured before the digital inputs are applied.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, ensure that the output voltage is within the specified range and that the load impedance is within the recommended range.
  • The AD5665RBCBZ-1-RL7 can drive capacitive loads up to 1nF. However, it is recommended to limit the capacitive load to 100pF or less to ensure stability and prevent oscillations.
  • To handle thermal considerations, ensure that the device is mounted on a suitable heat sink, and the ambient temperature is within the specified range. Also, ensure that the device is not exposed to excessive thermal stress, and the thermal impedance is minimized.
  • The recommended layout and routing for the AD5665RBCBZ-1-RL7 involves separating the analog and digital circuits, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, ensure that the power supply traces are wide and short, and the decoupling capacitors are placed close to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5665RBCBZ-1-RL7 Overview

Use the download button to access the AD5665RBCBZ-1-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD566, or try a keyword search, such as Digital to Analog Converters
