AD5666ARUZ-2 - Analog Devices

Description: Analog Devices AD5666ARUZ-2, 4-channel 16 bit Serial DAC, 95ksps, 14-Pin TSSOP

Download AD5666ARUZ-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

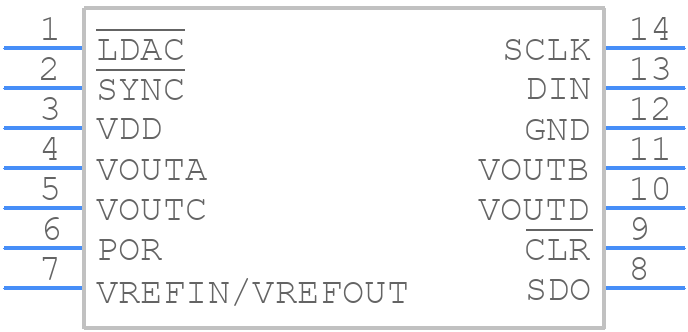

Symbol
AD5666ARUZ-2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5666ARUZ-2 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
AD5666ARUZ-2 - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

AD5666ARUZ-2 Details

  • Manufacturer Part Number:

    AD5666ARUZ-2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    3.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5666ARUZ-2 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVCC, and then the digital supplies (VDDIO and VREF). This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output, it is essential to decouple the power supplies (VDD, AVCC, VDDIO, and VREF) with high-quality capacitors (e.g., 10 μF ceramic capacitors) and to use a low-noise, low-impedance power supply. Additionally, ensure that the output voltage is not loaded excessively, and that the output capacitor is of high quality and suitable for the application.
  • The maximum output current of the AD5666ARUZ-2 is 5 mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • The AD5666ARUZ-2 can be interfaced with a microcontroller using a standard SPI interface. The microcontroller should be configured to operate in SPI mode, and the AD5666ARUZ-2 should be connected to the microcontroller's SPI pins (SCK, MOSI, and MISO). Ensure that the microcontroller's clock frequency is within the AD5666ARUZ-2's specified clock frequency range (up to 50 MHz).
  • The VREF pin is the reference voltage input for the AD5666ARUZ-2. It sets the full-scale output voltage range of the device. Typically, VREF is connected to a stable voltage reference source, such as a voltage regulator or a bandgap reference.
