AD5669RBCPZ-1500R7 - Analog Devices

Description: Digital to Analog Converters - DAC Octal 16-bit I2C VTG Output dense

Download AD5669RBCPZ-1500R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

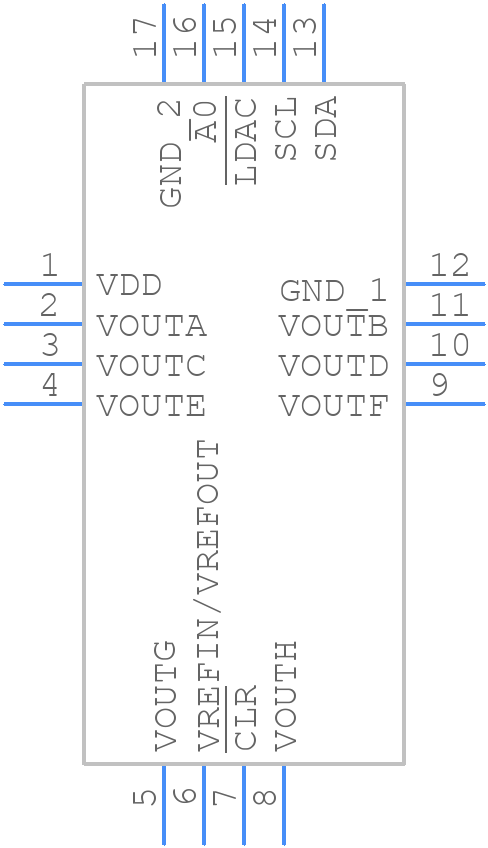

AD5669RBCPZ-1500R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5669RBCPZ-1500R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17
click to zoom
3D Models
AD5669RBCPZ-1500R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-17
click to zoom

AD5669RBCPZ-1500R7 Details

  • Manufacturer Part Number:

    AD5669RBCPZ-1500R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5669RBCPZ-1500R7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the digital inputs. This ensures that the internal circuitry is properly initialized and prevents any potential latch-up or damage to the device.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize digital noise coupling to the analog output. Additionally, calibrate the device using the internal calibration feature or an external calibration circuit.
  • The AD5669RBCPZ-1500R7 can drive capacitive loads up to 1nF. However, it is recommended to limit the capacitance to 100pF or less to ensure stability and prevent oscillations.
  • The AD5669RBCPZ-1500R7 has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from heat sources.
  • The recommended layout and routing for the AD5669RBCPZ-1500R7 involves keeping the analog and digital signals separate, using a star-ground configuration, and minimizing the length of the analog output traces. Additionally, use a solid ground plane and avoid routing digital signals under the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5669RBCPZ-1500R7 Overview

Use the download button to access the AD5669RBCPZ-1500R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD566, or try a keyword search, such as Digital to Analog Converters
