AD5669RBCPZ-2500R7 - Analog Devices

Description: Octal, 16-bit, I2C Voltage Output denseDAC with 5 ppm/°C On-Chip Reference

Download AD5669RBCPZ-2500R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

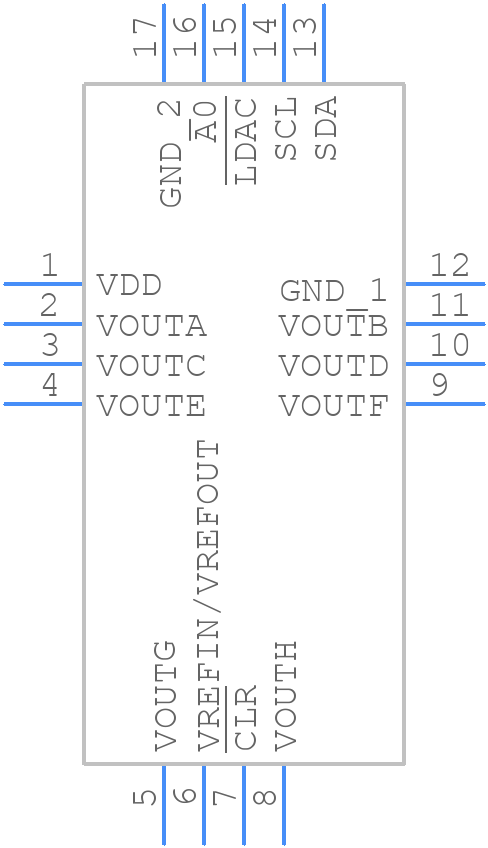

Symbol
AD5669RBCPZ-2500R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5669RBCPZ-2500R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17
click to zoom
3D Models
AD5669RBCPZ-2500R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-17
click to zoom

AD5669RBCPZ-2500R7 Details

  • Manufacturer Part Number:

    AD5669RBCPZ-2500R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5669RBCPZ-2500R7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the digital inputs. This ensures that the internal circuitry is properly initialized and prevents any potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to use a high-quality external reference voltage, maintain a stable power supply, and minimize noise on the digital inputs. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The AD5669RBCPZ-2500R7 can drive up to 1nF of capacitance. Exceeding this limit may cause instability or oscillations in the output voltage.
  • A voltage clamp or limit can be implemented using an external op-amp and a few resistors. The op-amp can be configured as a comparator to detect when the output voltage exceeds a certain limit, and then clamp the output to a safe value.
  • The AD5669RBCPZ-2500R7's performance is affected by temperature, with the output voltage drift and linearity error increasing with temperature. However, the device is designed to operate over a wide temperature range (-40°C to 125°C), and the datasheet provides detailed information on the temperature coefficients of the various parameters.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5669RBCPZ-2500R7 Overview

Use the download button to access the AD5669RBCPZ-2500R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD566, or try a keyword search, such as Digital to Analog Converters
