AD5673RBCPZ-1 - Analog Devices

Description: Digital to Analog Converters - DAC 16-Ch12-BITnanoDAC+with2ppm/Cref,I2C

Download AD5673RBCPZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

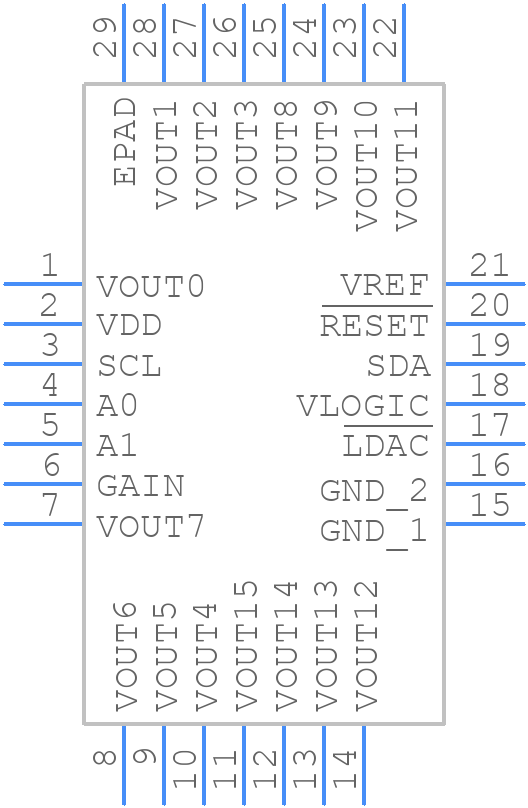

Symbol
AD5673RBCPZ-1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5673RBCPZ-1 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP-5673
click to zoom
3D Models
AD5673RBCPZ-1 - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP-5673
click to zoom

AD5673RBCPZ-1 Details

  • Manufacturer Part Number:

    AD5673RBCPZ-1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-04-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.02441%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD5673RBCPZ-1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C). This ensures that the internal voltage regulators are properly enabled and the device is configured correctly.
  • To minimize output voltage glitches during power-up or power-down, it is recommended to use an external capacitor (e.g., 10nF) between the VOUT pin and GND. This capacitor helps to filter out any voltage transients and ensures a smooth output voltage transition.
  • The maximum output current capability of the AD5673RBCPZ-1 is 25mA per channel. However, it is recommended to limit the output current to 10mA per channel to ensure reliable operation and to prevent overheating.
  • To ensure accurate output voltage levels, it is recommended to use a high-precision external reference voltage (e.g., ADR4520) and to calibrate the device during production. Additionally, the output voltage levels can be trimmed using the internal DAC registers.
  • The recommended layout and routing for the AD5673RBCPZ-1 involves keeping the analog and digital signal paths separate, using a solid ground plane, and minimizing the length of the output voltage traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
