AD5674BCPZ-1 - Analog Devices

Description: Digital to Analog Converters - DAC 16-Ch16-BITnanoDAC+with2ppm/Cref,SPI

Download AD5674BCPZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

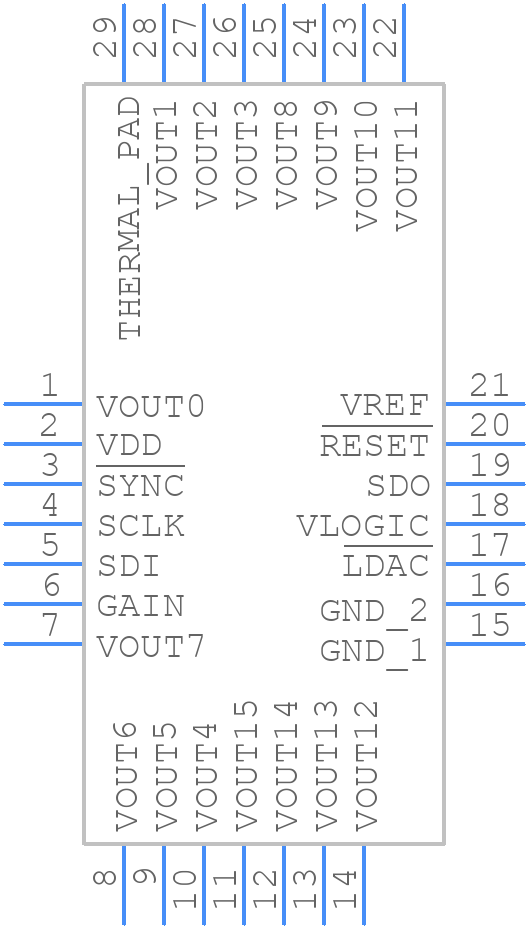

Symbol
AD5674BCPZ-1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5674BCPZ-1 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD5674RBCPZ-1
click to zoom
3D Models
AD5674BCPZ-1 - Analog Devices - 3D model - Quad Flat No-Lead - AD5674RBCPZ-1
click to zoom

AD5674BCPZ-1 Details

  • Manufacturer Part Number:

    AD5674BCPZ-1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5674BCPZ-1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the analog and digital circuits are powered up in a controlled manner.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference, such as the ADR435, and to follow proper PCB layout and grounding techniques to minimize noise and interference.
  • The maximum output current capability of the AD5674BCPZ-1 is 10 mA per channel. Exceeding this limit may cause damage to the device or affect its accuracy.
  • The AD5674BCPZ-1 has built-in fault detection capabilities, including overtemperature detection and output voltage monitoring. You can also implement external fault detection and protection circuits using the device's fault detection pins (FAULT and FAULTB).
  • To minimize noise and interference, it is recommended to follow a star-grounding scheme, keep analog and digital traces separate, and use a solid ground plane. Additionally, place decoupling capacitors close to the device's power pins.
