AD5675BCPZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-bit octal I2C nanoDAC

Download AD5675BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

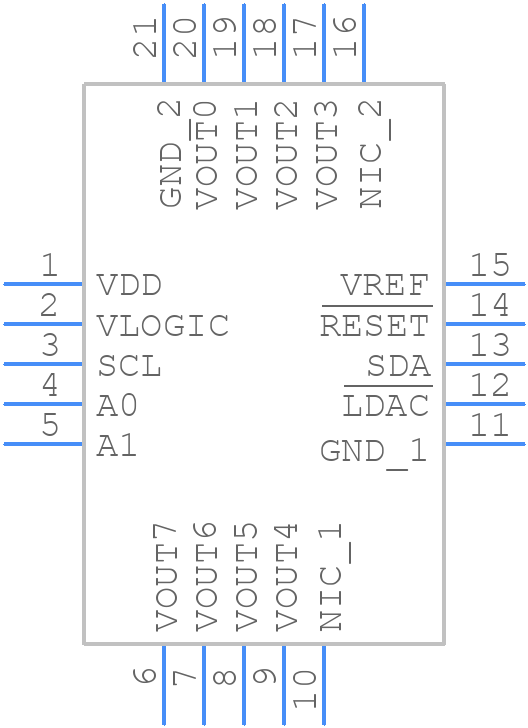

AD5675BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5675BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-8 (LFCSP_WQ)
click to zoom
3D Models
AD5675BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-8 (LFCSP_WQ)
click to zoom

AD5675BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD5675BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5675BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the analog and digital circuits are powered up in the correct order.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise power supply, decouple the power pins with suitable capacitors, and use a high-precision voltage reference. Additionally, ensure that the output voltage is within the specified range and that the load current is within the recommended limits.
  • The AD5675 can supply up to 10 mA of output current per channel. However, it is recommended to limit the output current to 5 mA per channel to ensure reliable operation and to prevent overheating.
  • The AD5675 can be programmed using a microcontroller through a serial interface (SPI or I2C). The microcontroller sends commands and data to the AD5675, which then configures the DAC outputs accordingly. Refer to the datasheet for the specific programming sequence and protocol.
  • The LDAC (Load DAC) pin is used to update the DAC outputs simultaneously. When the LDAC pin is low, the DAC outputs are updated with the new data. When the LDAC pin is high, the DAC outputs are latched and do not change until the LDAC pin is brought low again.
