AD5675BRUZ - Analog Devices

Description: Analog Devices AD5675BRUZ, 8-Channel Serial DAC, 20-Pin TSSOP

Download AD5675BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

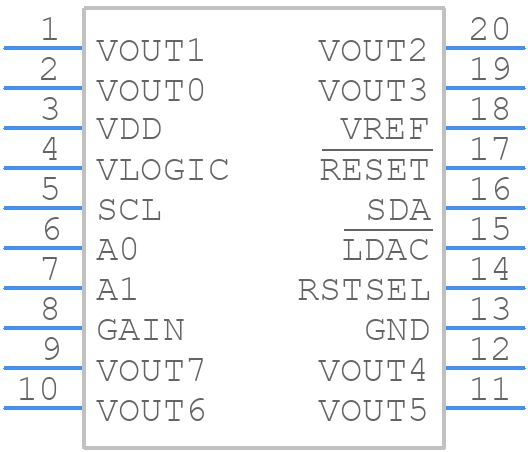

Symbol
AD5675BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5675BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD5675BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD5675BRUZ Details

  • Manufacturer Part Number:

    AD5675BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5675BRUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise power supply, decouple the power pins with capacitors, and use a high-precision voltage reference. Additionally, ensure that the output voltage is within the specified range and that the load current is within the recommended limits.
  • The AD5675BRUZ can supply up to 10 mA of output current per channel. However, it is recommended to limit the output current to 5 mA per channel to ensure accurate voltage output and to prevent overheating.
  • The AD5675BRUZ can be programmed using a 3-wire serial interface (SPI-compatible). The output voltage is determined by the 16-bit data word written to the device. The output voltage range is 0 V to VREF, and the output voltage is calculated as (D/65536) * VREF, where D is the 16-bit data word.
  • The settling time of the AD5675BRUZ is typically 10 μs to 1% of the final value. However, this can vary depending on the output voltage, load capacitance, and other factors. It is recommended to consult the datasheet and application notes for more information.
