AD5675RBCPZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-bit octal I2C nanoDAC with ref

Download AD5675RBCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

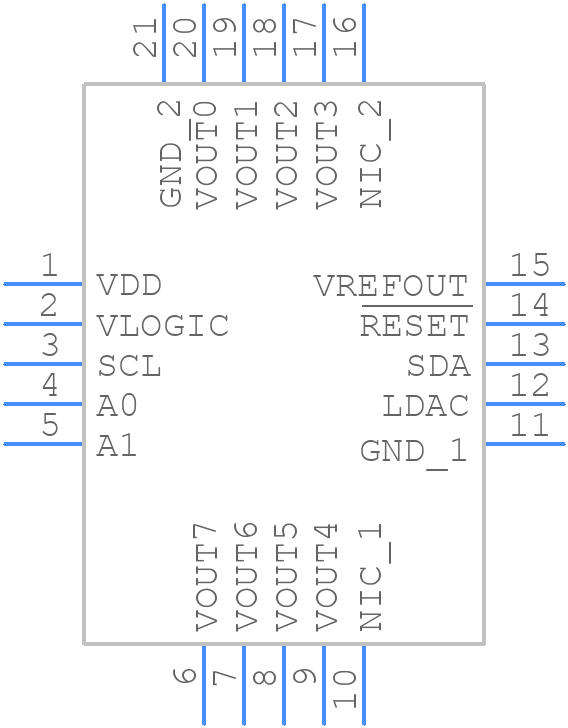

Symbol
AD5675RBCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5675RBCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-8
click to zoom
3D Models
AD5675RBCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-8
click to zoom

AD5675RBCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD5675RBCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5675RBCPZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the VDD pin first, followed by the AVDD pin, and then the DVDD pin. This ensures that the internal voltage regulators are powered up correctly.
  • The AD5675RBCPZ-REEL7 is specified to operate from -40°C to 125°C. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range. Also, consider the thermal resistance of the package and the PCB layout to ensure that the junction temperature is within the specified range.
  • The recommended layout and routing for the AD5675RBCPZ-REEL7 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the traces. Also, ensure that the power supply pins are decoupled with capacitors and that the analog and digital power supplies are separated.
  • The AD5675RBCPZ-REEL7 can be programmed using a microcontroller through its SPI interface. The microcontroller can send commands and data to the AD5675RBCPZ-REEL7 using the SPI protocol, and the AD5675RBCPZ-REEL7 will respond accordingly. Refer to the datasheet for the specific SPI protocol and command set.
  • The maximum output current of the AD5675RBCPZ-REEL7 is 25 mA per channel. Ensure that the output current is within this limit to prevent damage to the device.
