AD5676ARUZ-REEL7 - Analog Devices

Description: Octal, 16-Bit nanoDAC+ with SPI Interface

Download AD5676ARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

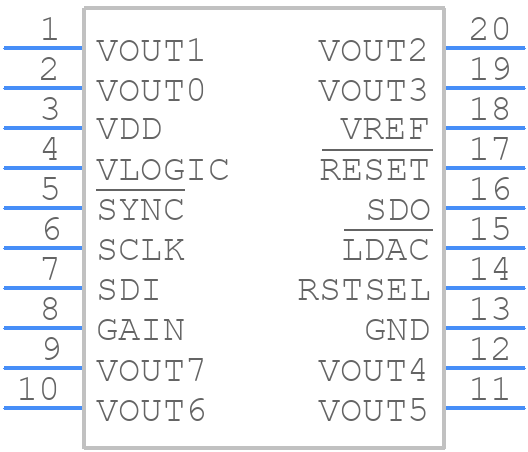

AD5676ARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5676ARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Thin Shrink Small Outline Package*
click to zoom
3D Models
AD5676ARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 20-Lead Thin Shrink Small Outline Package*
click to zoom

AD5676ARUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5676ARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5676ARUZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the analog and digital circuits are powered up in the correct order.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference, such as the ADR4520 or ADR4540, and to follow proper PCB layout and grounding techniques to minimize noise and interference.
  • The maximum output current capability of the AD5676ARUZ-REEL7 is 10 mA per channel. Exceeding this limit can cause damage to the device or affect its performance.
  • The AD5676ARUZ-REEL7 has built-in fault detection and protection features, including overcurrent protection, overvoltage protection, and thermal shutdown. Additionally, you can implement external fault detection and protection circuits using resistors, capacitors, and other components.
  • To minimize noise and interference, it is recommended to follow proper PCB layout and routing techniques, such as separating analog and digital signals, using ground planes, and minimizing trace lengths and widths.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5676ARUZ-REEL7 Overview

Use the download button to access the AD5676ARUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD567, or try a keyword search, such as Digital to Analog Converters
