AD5676RACPZ-REEL7 - Analog Devices

Description: IC DAC 16BIT SPI 20LFCSP

Download AD5676RACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

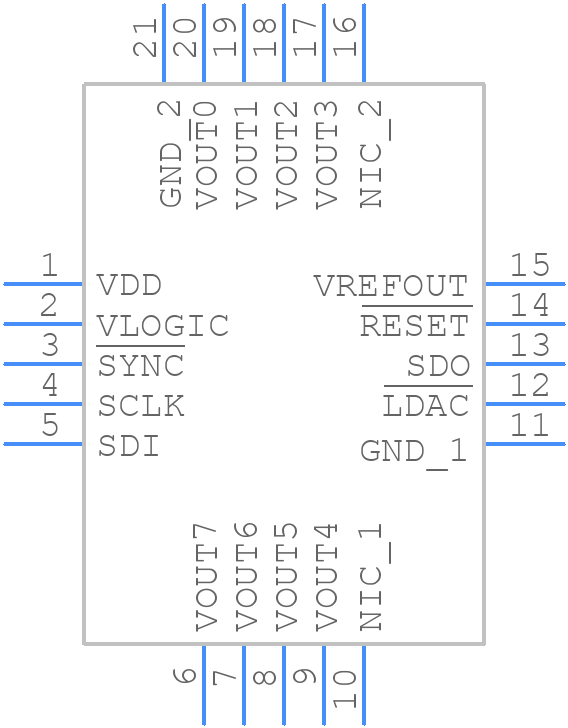

Symbol
AD5676RACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5676RACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-8 (LFCSP_WQ)
click to zoom
3D Models
AD5676RACPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-8 (LFCSP_WQ)
click to zoom

AD5676RACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD5676RACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5676RACPZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the analog and digital circuits are powered up in a controlled manner.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference, such as the ADR4520 or ADR4540, and to follow proper PCB layout and grounding techniques to minimize noise and interference.
  • The maximum output current capability of the AD5676RACPZ-REEL7 is 10 mA per channel. Exceeding this limit can cause damage to the device or affect its accuracy.
  • The AD5676RACPZ-REEL7 has built-in fault detection capabilities, including overtemperature detection and output voltage monitoring. You can also implement external fault detection and protection circuits using external components and programming.
  • To minimize noise and interference, it is recommended to follow a star-grounding scheme, keep analog and digital signals separate, and use shielding and filtering as necessary. The datasheet provides more detailed guidelines for PCB layout and routing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5676RACPZ-REEL7 Overview

Use the download button to access the AD5676RACPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
