- Stock & Prices $ Price & Stock for AD5679RBCPZ-1
- Part Number AD5679RBCPZ-1
- Manufacturer Analog Devices
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - cp-28-9
- Released Date Dec 5, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD5679RBCPZ-1 Details
-
Manufacturer Part Number:
AD5679RBCPZ-1
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LFCSP-28
-
Pin Count:
28
-
Manufacturer Package Code:
CP-28-9
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2019-08-29
-
Manufacturer:
Analog Devices Inc
AD5679RBCPZ-1 Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD) and then the clock signal. This ensures proper initialization of the device.
-
To ensure accurate voltage output, it is essential to use a high-precision voltage reference, such as the ADR4550, and to follow proper PCB layout and grounding techniques to minimize noise and interference.
-
The maximum output current capability of the AD5679RBCPZ-1 is 10 mA per channel. Exceeding this limit may result in reduced accuracy and reliability.
-
The AD5679RBCPZ-1 has built-in fault detection capabilities, including overtemperature detection and output voltage monitoring. Additionally, external fault detection circuits can be implemented using resistors and comparators to detect output voltage faults.
-
To minimize noise and interference, it is recommended to use a star-grounding configuration, keep analog and digital signals separate, and use shielding and guard rings to protect sensitive signals.
Trust Checks
Expert Contribution
System Verified
Community Approved
AD5679RBCPZ-1 Overview

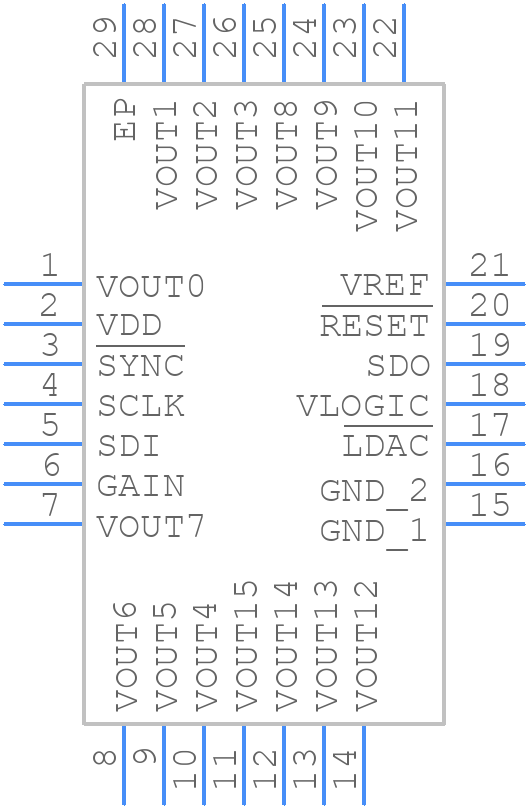

Use the download button to access the AD5679RBCPZ-1 schematic symbol, PCB footprint, and 3D model.
