AD5683RARMZ - Analog Devices

Description: Analog Devices AD5683RARMZ, Serial DAC, 10-Pin MSOP

Download AD5683RARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

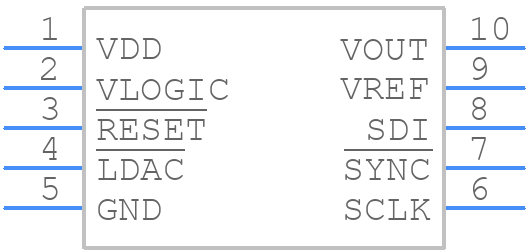

Symbol
AD5683RARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5683RARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - [MSOP]
click to zoom
3D Models
AD5683RARMZ - Analog Devices - 3D model - Small Outline Packages - [MSOP]
click to zoom

AD5683RARMZ Details

  • Manufacturer Part Number:

    AD5683RARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5683RARMZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C). This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to use a stable and low-noise power supply, decouple the power pins with capacitors, and use a high-precision voltage reference (e.g., ADR3412). Additionally, ensure the output voltage is within the specified range (0 to VREF) and the output current is within the recommended range (up to 5 mA).
  • The maximum capacitance on the output of the AD5683RARMZ is 100 nF. Exceeding this value may cause stability issues or oscillations. If a larger capacitance is required, consider using an output buffer or a voltage follower to isolate the load capacitance.
  • Yes, the AD5683RARMZ can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage (VREF). This configuration is useful when the output voltage needs to track changes in the reference voltage. However, ensure that the reference voltage is stable and has a low noise floor to maintain accurate output voltage.
  • To enter power-down mode, set the SHDN pin low. In this mode, the device consumes minimal power, and the output voltage is disconnected from the load. When exiting power-down mode, ensure a stable power supply and a valid input code to prevent output voltage glitches.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5683RARMZ Overview

Use the download button to access the AD5683RARMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD568, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
