AD5683RBRMZ-3 - Analog Devices

Description: Digital to Analog Converters - DAC 16-bit SPI nanoDAC+ with on-chip 1.25V/2

Download AD5683RBRMZ-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

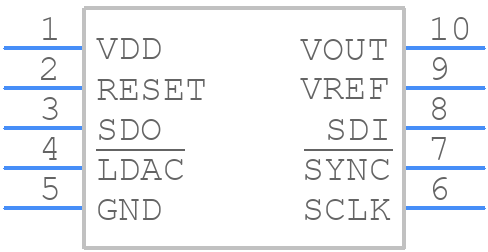

Symbol
AD5683RBRMZ-3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5683RBRMZ-3 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7789BRMZ
click to zoom
3D Models
AD5683RBRMZ-3 - Analog Devices - 3D model - Small Outline Packages - AD7789BRMZ
click to zoom

AD5683RBRMZ-3 Details

  • Manufacturer Part Number:

    AD5683RBRMZ-3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5683RBRMZ-3 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly biased and configured before the digital inputs are applied.
  • To ensure accurate voltage output, it is essential to decouple the VREF pin with a 10uF capacitor to ground, and to use a low-noise, low-impedance voltage source for VREF. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The AD5683RBRMZ-3 can drive a maximum capacitance of 100nF. Exceeding this limit may cause instability or oscillations in the output voltage.
  • To minimize power consumption, ensure that the input clock frequency is as low as possible, and consider using the power-down mode when the device is not in use. Additionally, using a lower VDD voltage can also help reduce power consumption.
  • The thermal impedance of the AD5683RBRMZ-3 package is typically around 30°C/W. This means that for every watt of power dissipated, the junction temperature will rise by 30°C above the ambient temperature.
