AD5683RBRMZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-bit SPI nanoDAC+ with on-chip 1.25V/2

Download AD5683RBRMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

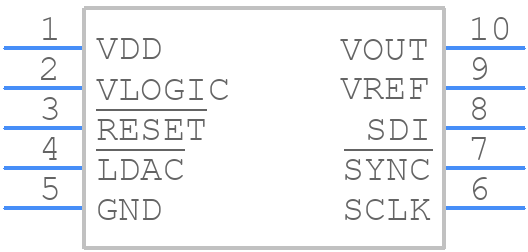

Symbol
AD5683RBRMZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5683RBRMZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5683RBRMZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5683RBRMZ-RL7 Details

  • Manufacturer Part Number:

    AD5683RBRMZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5683RBRMZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures proper operation and prevents damage to the device.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise power supply, decouple the power pins with capacitors, and use a high-precision voltage reference. Additionally, ensure that the output voltage is within the specified range and that the load current is within the recommended limits.
  • The maximum capacitance on the output of the AD5683RBRMZ-RL7 is 10nF. Exceeding this value may cause instability or oscillations in the output voltage.
  • Yes, the AD5683RBRMZ-RL7 can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This configuration is useful in applications where the output voltage needs to track changes in the reference voltage.
  • The thermal shutdown feature is designed to protect the device from overheating. If the device exceeds the maximum junction temperature, it will shut down to prevent damage. To handle thermal shutdown, ensure proper heat sinking, reduce power consumption, and provide adequate airflow around the device.
