AD5683RBRMZ - Analog Devices

Description: Analog Devices AD5683RBRMZ, Serial DAC, 10-Pin MSOP

Download AD5683RBRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

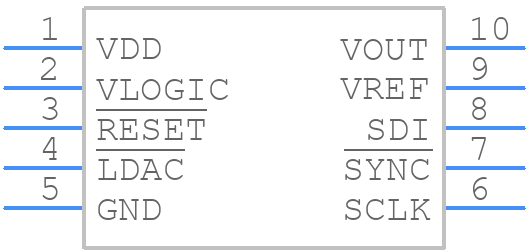

AD5683RBRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5683RBRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP 10
click to zoom
3D Models
AD5683RBRMZ - Analog Devices - 3D model - Small Outline Packages - MSOP 10
click to zoom

AD5683RBRMZ Details

  • Manufacturer Part Number:

    AD5683RBRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5683RBRMZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C). This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize noise coupling into the device. Additionally, calibrate the device using the internal calibration feature or an external calibration signal.
  • The maximum capacitance on the output of the AD5683RBRMZ is 10 nF. Exceeding this value may cause stability issues or oscillations. If a larger capacitance is required, consider using an output buffer or a dedicated op-amp to drive the load.
  • Yes, the AD5683RBRMZ can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This is useful in applications where the output voltage needs to track changes in the reference voltage.
  • The POR and BOR features ensure the device resets to a known state during power-up or brown-out conditions. To handle these features, ensure that the device is properly powered up, and the reset signal is properly debounced and synchronized with the system clock.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5683RBRMZ Overview

Use the download button to access the AD5683RBRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD568, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
