AD5687BRUZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC IC 12-Bit 2-CH w/ SPI INTERFACE

Download AD5687BRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

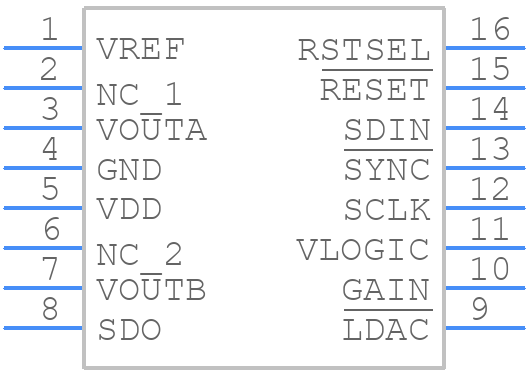

AD5687BRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5687BRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5687BRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5687BRUZ-RL7 Details

  • Manufacturer Part Number:

    AD5687BRUZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:14.338

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5687BRUZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the VDD pin first, followed by the AVDD pin, and then the digital interface pins (SCL, SDA, etc.). This ensures that the internal voltage regulators are properly enabled and the device is configured correctly.
  • To ensure accurate voltage output, it is essential to follow the recommended layout and decoupling guidelines, use a low-noise power supply, and minimize digital noise coupling into the analog output. Additionally, calibrate the device using the internal calibration feature or an external calibration method.
  • The AD5687BRUZ-RL7 can drive up to 1 μF of capacitance at its output. However, it is recommended to limit the capacitance to 100 nF or less to ensure stability and minimize settling time.
  • Yes, the AD5687BRUZ-RL7 can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This can be useful in applications where the output voltage needs to track changes in the reference voltage.
  • The AD5687BRUZ-RL7 has a built-in brownout detection feature that resets the device when the supply voltage falls below a certain threshold. To handle brownout detection and reset, connect the BOR pin to a suitable voltage threshold detector or a microcontroller that can detect the brownout condition and initiate a reset sequence.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5687BRUZ-RL7 Overview

Use the download button to access the AD5687BRUZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD568, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
