AD5687RBCPZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 12B 2ch SPI nanoDAC+ with on-chip ref

Download AD5687RBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

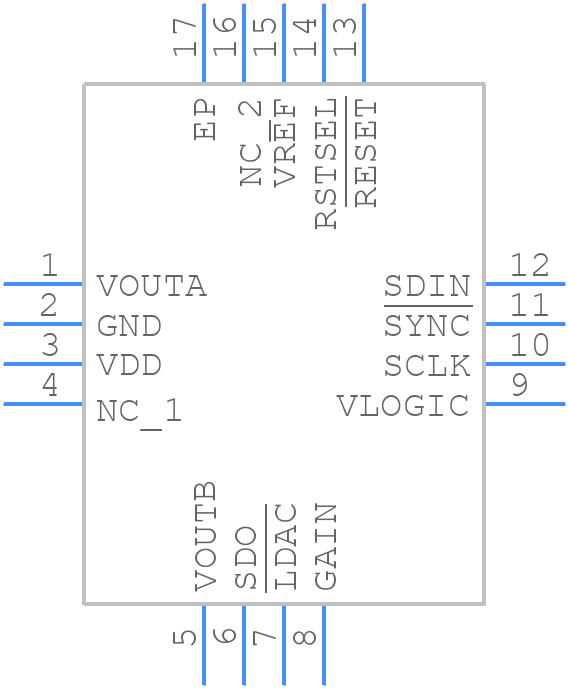

Symbol
AD5687RBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5687RBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22 16-Lead LFCSP
click to zoom
3D Models
AD5687RBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22 16-Lead LFCSP
click to zoom

AD5687RBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD5687RBCPZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:14.339

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

AD5687RBCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital interface (e.g., SPI) can be initialized. This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output, it is essential to follow proper PCB layout guidelines, use a low-noise power supply, and decouple the power pins with suitable capacitors. Additionally, ensure that the output voltage is measured directly at the output pin, and not through a long cable or PCB trace.
  • The maximum capacitance recommended on the output of the AD5687RBCPZ-RL7 is 10nF. Exceeding this value may cause stability issues or oscillations in the output voltage.
  • Yes, the AD5687RBCPZ-RL7 can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. However, this requires careful consideration of the reference voltage source and its noise characteristics.
  • The thermal shutdown feature is designed to protect the device from overheating. If the device exceeds the maximum junction temperature, it will shut down. To handle this, ensure proper heat sinking, use a thermal pad or heat sink, and monitor the device temperature using the THERM pin.
