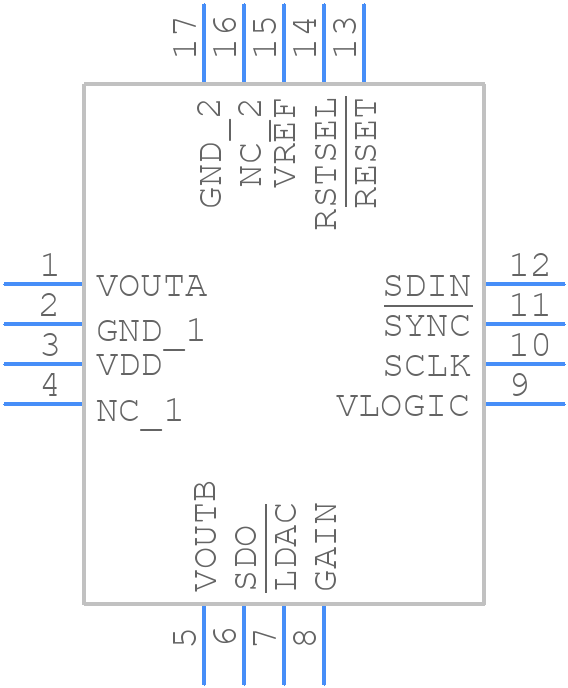

AD5689RACPZ-RL7 - Analog Devices

AD5689RACPZ-RL7 Details

• Manufacturer Part Number:

  AD5689RACPZ-RL7

• Source Url Status Check Date:

  2013-05-01 14:56:14.372

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  LFCSP-16

• Pin Count:

  16

• Manufacturer Package Code:

  CP-16-22

• Country Of Origin:

  South Korea

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Output Voltage-Max:

  5.005 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e3

• Length:

  3 mm

• Linearity Error-Max (EL):

  0.0122%

• Moisture Sensitivity Level:

  3

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC16,.12SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Settling Time-Max:

  8 µs

• Settling Time-Nom (tstl):

  5 µs

• Supply Current-Max:

  1.3 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
