AD5689RBRUZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-Bit 2-ch SPI nanoDAC+with on-chip ref

Download AD5689RBRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

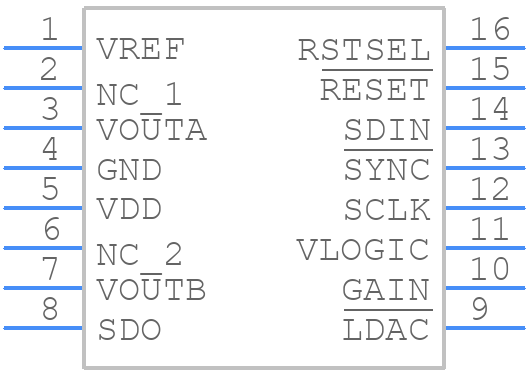

AD5689RBRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5689RBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
AD5689RBRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

AD5689RBRUZ-RL7 Details

  • Manufacturer Part Number:

    AD5689RBRUZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:14.377

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5689RBRUZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output, it is essential to decouple the power supplies (VDD, AVDD, DVDD, and OVDD) with high-quality capacitors (e.g., 10uF ceramic capacitors) and to use a low-noise, low-impedance power supply. Additionally, ensure that the output voltage is not loaded excessively, and the output capacitor is of high quality and suitable for the application.
  • The maximum output current capability of the AD5689RBRUZ-RL7 is 10mA per channel. Exceeding this limit may cause the output voltage to droop or the device to overheat.
  • The AD5689RBRUZ-RL7 can be interfaced with a microcontroller using a standard SPI interface. The microcontroller should be configured to operate in SPI master mode, and the AD5689RBRUZ-RL7 should be configured as a SPI slave device. Ensure that the microcontroller's clock frequency is within the recommended range of 10kHz to 50MHz.
  • The AD5689RBRUZ-RL7 is a high-power device and requires proper thermal management to ensure reliable operation. A heat sink or a thermal pad can be used to dissipate heat. Ensure that the device is mounted on a PCB with a good thermal conductivity, and that the ambient temperature is within the recommended range of -40°C to 125°C.
