AD5689RWBCPZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-Bit 2-ch SPI nanoDAC+with on-chip ref

Download AD5689RWBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

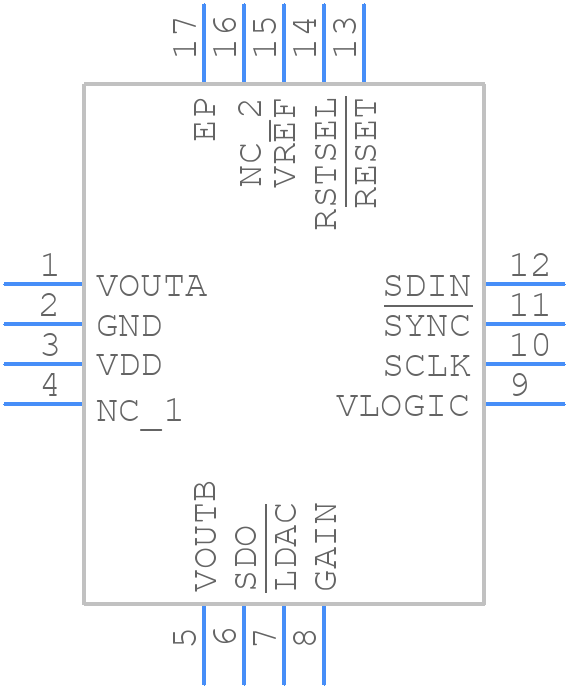

Symbol
AD5689RWBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5689RWBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)/2022
click to zoom
3D Models
AD5689RWBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-22)/2022
click to zoom

AD5689RWBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD5689RWBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5689RWBCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence for the AD5689 is to power up VDD first, followed by AVDD, and then the digital interface (SCL and SDA). This ensures that the internal voltage regulators are powered up correctly and the device is properly initialized.
  • To ensure accurate voltage output from the AD5689, it is recommended to use a high-accuracy external reference voltage, keep the output voltage within the specified range, and minimize noise and interference on the power supply and output lines.
  • The AD5689's output can drive up to 1nF of capacitance. Exceeding this limit may cause instability or oscillations in the output voltage.
  • Yes, the AD5689 can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This can be useful in applications where the output voltage needs to track changes in the reference voltage.
  • The AD5689 has a built-in brownout detection circuit that resets the device when the supply voltage falls below a certain threshold. To handle brownout detection and reset, it is recommended to use an external reset circuit that can detect the brownout condition and reset the device accordingly.
