AD5692RACPZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC LDAC,nano-14bit/ref LP, LFCSP

Download AD5692RACPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

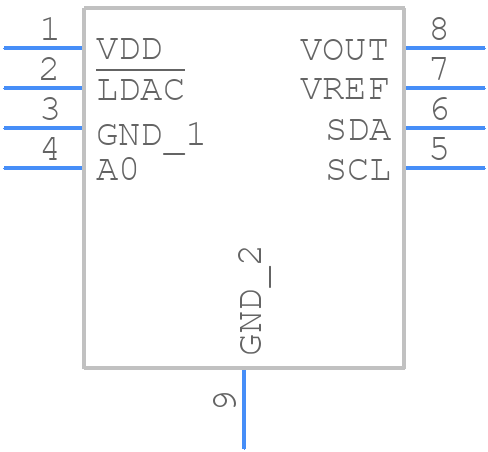

Symbol
AD5692RACPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5692RACPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-10
click to zoom
3D Models
AD5692RACPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-10
click to zoom

AD5692RACPZ-RL7 Details

  • Manufacturer Part Number:

    AD5692RACPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

AD5692RACPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C). This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to use a stable and low-noise power supply, decouple the power pins with capacitors, and use a high-precision external reference voltage (if not using the internal reference). Additionally, ensure the output voltage is within the specified range and the load current is within the recommended limits.
  • The maximum capacitance on the output of the AD5692RACPZ-RL7 is 10 nF. Exceeding this value may cause stability issues or oscillations. If a larger capacitance is required, consider using an output buffer or a voltage follower to isolate the load capacitance.
  • Yes, the AD5692RACPZ-RL7 can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This can be useful in applications where the output voltage needs to track changes in the reference voltage. However, ensure that the reference voltage is stable and within the specified range.
  • To handle thermal considerations, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exposing the device to extreme temperatures. The AD5692RACPZ-RL7 has a maximum junction temperature of 150°C, so ensure the device operates within the recommended temperature range.
