AD5693RBCPZ-2RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-bit SPI nanoDAC+ with on-chip ref and

Download AD5693RBCPZ-2RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

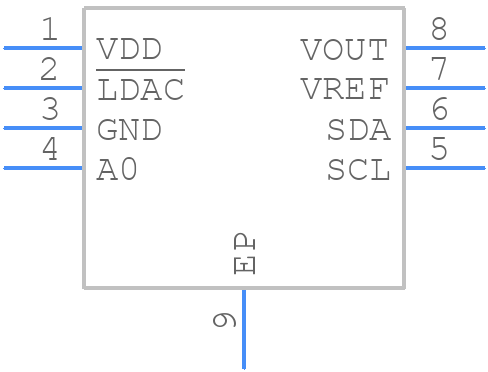

AD5693RBCPZ-2RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5693RBCPZ-2RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-10
click to zoom
3D Models
AD5693RBCPZ-2RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-10
click to zoom

AD5693RBCPZ-2RL7 Details

  • Manufacturer Part Number:

    AD5693RBCPZ-2RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

AD5693RBCPZ-2RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C). This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to use a stable and low-noise power supply, minimize noise on the analog input pins, and use a high-precision external reference voltage (if not using the internal reference). Additionally, ensure proper PCB layout and decoupling to minimize noise and interference.
  • The maximum capacitance on the output of the AD5693R depends on the specific application and output voltage. As a general guideline, Analog Devices recommends keeping the output capacitance below 100 nF to ensure stability and prevent oscillations. However, it's essential to consult the datasheet and application notes for specific guidance.
  • Yes, the AD5693R can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This configuration can provide improved accuracy and temperature coefficient. However, it's crucial to ensure that the reference voltage is stable and accurate to maintain overall system performance.
  • The thermal shutdown temperature of the AD5693R is typically around 150°C. If the device temperature exceeds this threshold, it will enter a thermal shutdown mode to prevent damage. Once the temperature drops below the threshold, the device will resume normal operation.
