AD5693RBRMZ - Analog Devices

Description: ANALOG DEVICES - AD5693RBRMZ - DAC, 16BIT, I2C/SPI, MSOP-10

Download AD5693RBRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

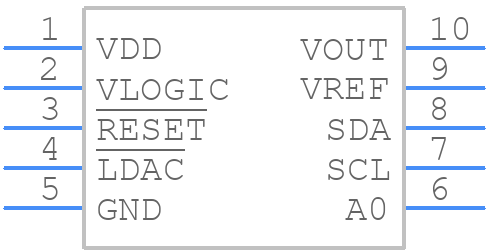

AD5693RBRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5693RBRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP_RM-10
click to zoom
3D Models
AD5693RBRMZ - Analog Devices - 3D model - Small Outline Packages - MSOP_RM-10
click to zoom

AD5693RBRMZ Details

  • Manufacturer Part Number:

    AD5693RBRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5693RBRMZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C). This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise power supply, decouple the power pins with suitable capacitors, and maintain a stable reference voltage. Additionally, ensure that the output voltage is within the specified range and that the load current does not exceed the maximum rating.
  • The maximum capacitance on the output of the AD5693RBRMZ is 10 nF. Exceeding this value may cause oscillations or instability in the output voltage. If a larger capacitance is required, consider using an output buffer or a voltage follower to isolate the load capacitance.
  • Yes, the AD5693RBRMZ can be used in a ratiometric configuration, where the reference voltage is derived from the power supply voltage. However, this requires careful consideration of the power supply voltage tolerance and its impact on the overall system accuracy.
  • The AD5693RBRMZ has a built-in POR and BOR function to ensure a reliable power-up sequence. The POR function resets the device when the power supply voltage falls below a certain threshold, while the BOR function monitors the power supply voltage and resets the device if it falls below a specified level. Ensure that your system design takes these functions into account to prevent unexpected resets or malfunctions.
