AD5695RBRUZ - Analog Devices

Description: Analog Devices AD5695RBRUZ, 4-channel 14 bit Serial DAC, 16-Pin TSSOP

Download AD5695RBRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

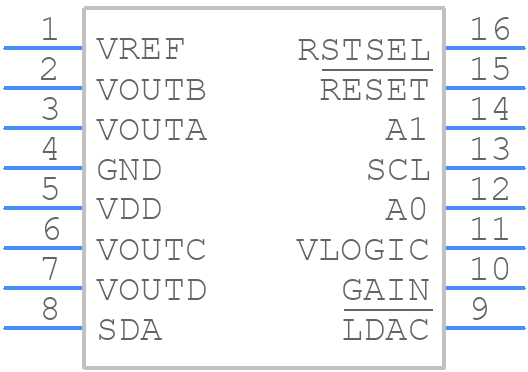

Symbol
AD5695RBRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5695RBRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5695RBRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5695RBRUZ Details

  • Manufacturer Part Number:

    AD5695RBRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5695RBRUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C). This ensures that the internal voltage regulators are properly enabled and the device is configured correctly.
  • To minimize output voltage glitches during power-up or power-down, it is recommended to use an external capacitor (e.g., 10nF) between the VOUT pin and GND. This capacitor helps to filter out any voltage transients and ensures a smooth output voltage transition.
  • The maximum capacitance allowed on the output pin (VOUT) is 100nF. Exceeding this capacitance may affect the stability of the output voltage and cause oscillations.
  • To ensure accurate output voltage settling during a code change, it is recommended to use a settling time of at least 10us after updating the DAC register. This allows the output voltage to settle to its final value before taking any measurements.
  • The AD5695RBRUZ's output voltage accuracy is affected by temperature. The device has a specified temperature coefficient of ±3ppm/°C, which means that the output voltage may drift by up to ±3ppm for every degree Celsius change in temperature. This drift can be minimized by using an external voltage reference with a low temperature coefficient.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5695RBRUZ Overview

Use the download button to access the AD5695RBRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD569, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
