AD569AD - Analog Devices

Description: Monolithic BiMOS II Construction 60.01% Typical Nonlinearity 8- and 16-Bit Bus Compatibility 3 ms Settling to 16 Bits Low Drift Low Power Low Noise APPLICATIONS Robotics Closed-Loop Positioning High-Resolution ADCs Microprocessor-Based Process Control MIL-STD-883 Compliant Versions Available

Download AD569AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

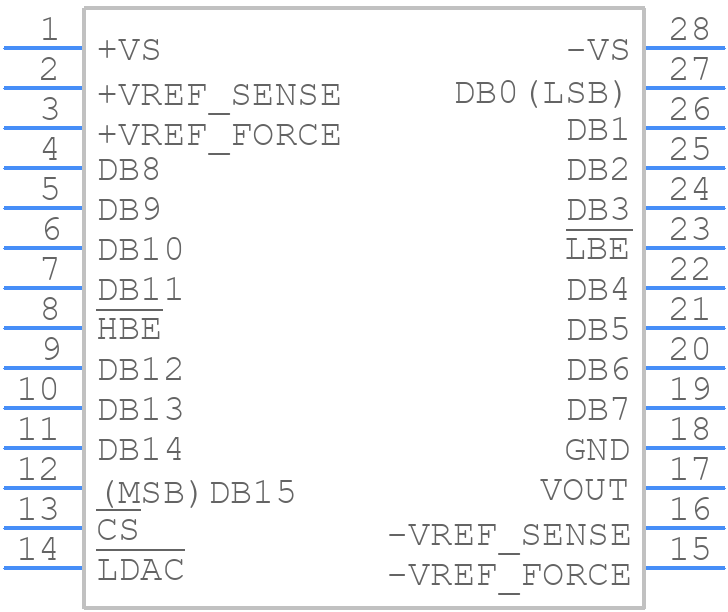

AD569AD - Analog Devices - PCB symbol
click to zoom
PCB Footprints

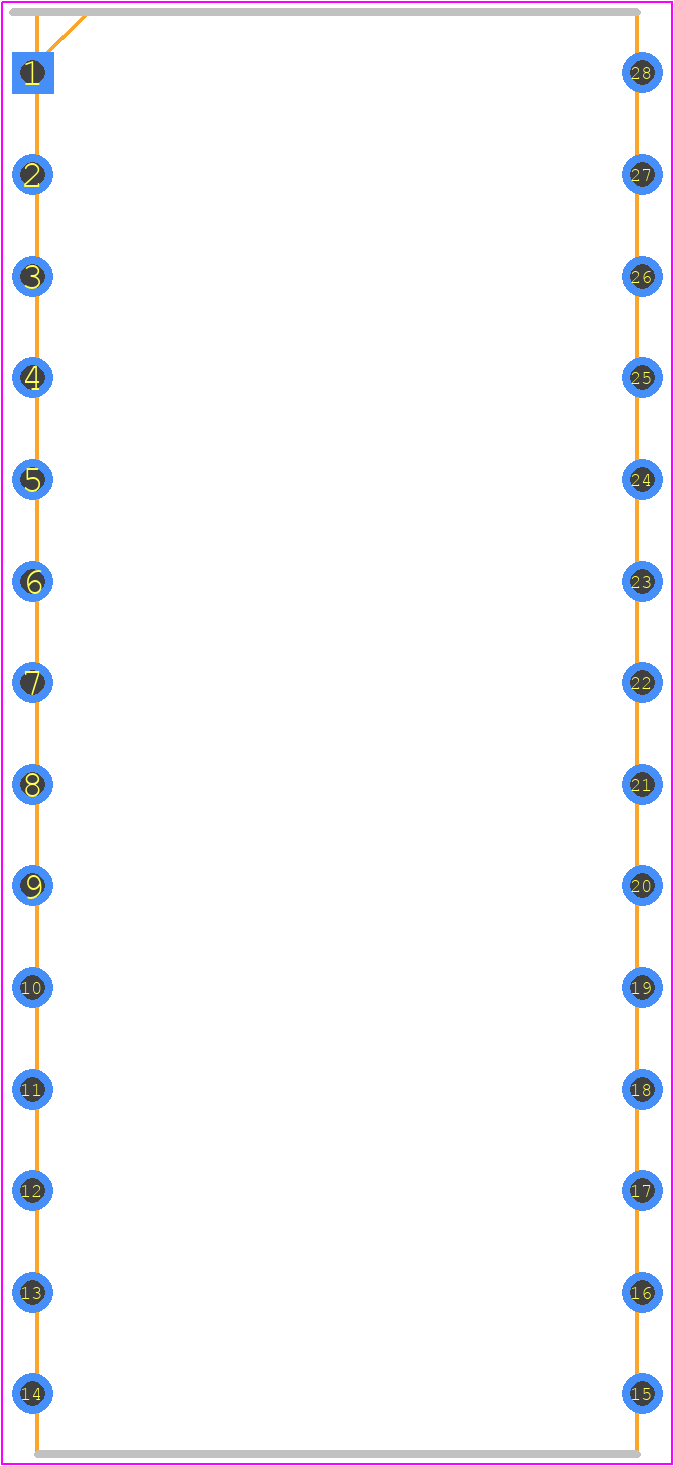

AD569AD - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D-28_2022
click to zoom
3D Models
AD569AD - Analog Devices - 3D model - Ceramic Dual-In-Line Packages - D-28_2022
click to zoom

AD569AD Details

  • Manufacturer Part Number:

    AD569AD

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    HERMETIC SEALED, CERAMIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    D-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-CDIP-T28

  • JESD-609 Code:

    e0

  • Linearity Error-Max (EL):

    0.04%

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.72 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

AD569AD Frequently Asked Questions (FAQs)

  • The maximum output current of the AD569xD is 25 mA. However, it's recommended to limit the output current to 10 mA for optimal performance and to prevent overheating.
  • To ensure accurate voltage output, make sure to use a stable and low-noise power supply, decouple the power pins with capacitors, and use a high-precision voltage reference. Additionally, ensure that the output voltage is within the specified range and that the output current is within the recommended limits.
  • The settling time of the AD569xD is typically around 10 μs to 20 μs, depending on the output voltage and load conditions. However, this can vary depending on the specific application and output configuration.
  • While the AD569xD is primarily designed as a voltage source, it can be used as a current source in certain applications. However, the output current is limited to 25 mA, and the device is not optimized for high-current applications. Additionally, the output impedance of the device may affect the accuracy of the current output.
  • The AD569xD can be easily interfaced with a microcontroller using a serial interface such as SPI or I2C. The device requires a clock signal, chip select signal, and data input lines. The microcontroller can send commands and data to the AD569xD to set the output voltage and configure the device.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD569AD Overview

Use the download button to access the AD569AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD569, or try a keyword search, such as Digital to Analog Converters
