AD569KNZ - Analog Devices

Description: AD569KNZ, 16 bit-Bit DAC Parallel, 28-Pin PDIP W

Download AD569KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

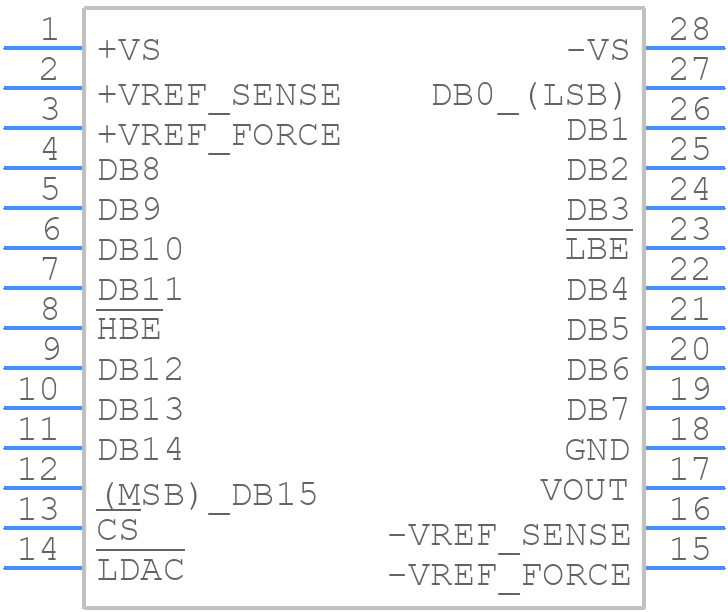

Symbol
AD569KNZ - Analog Devices - PCB symbol
click to zoom

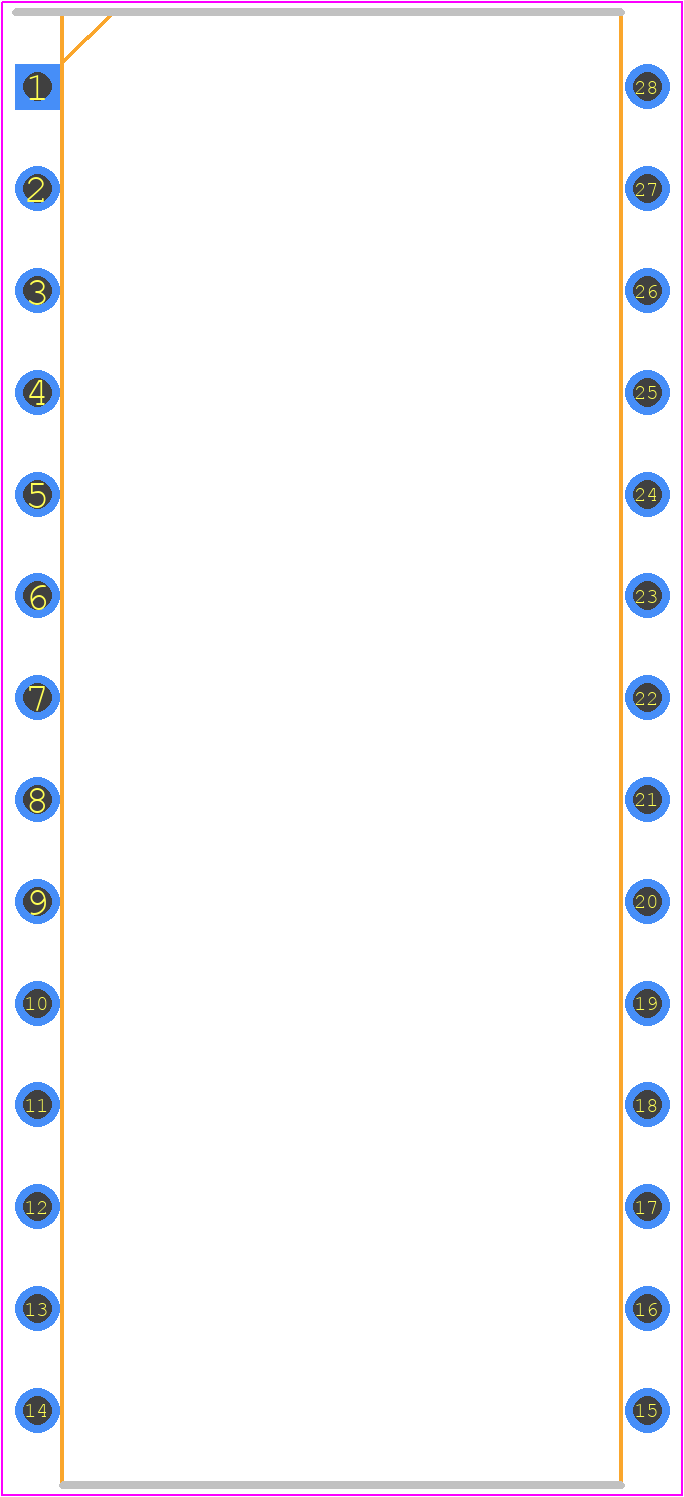

PCB Footprints
AD569KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-Pin Plastic DIP (N)
click to zoom
3D Models
AD569KNZ - Analog Devices - 3D model - Dual-In-Line Packages - 28-Pin Plastic DIP (N)
click to zoom

AD569KNZ Details

  • Manufacturer Part Number:

    AD569KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    N-28-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    37.4 mm

  • Linearity Error-Max (EL):

    0.024%

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.35 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

AD569KNZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (VCC and VEE). This ensures proper operation and prevents damage to the device.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise power supply, decouple the power pins with capacitors, and use a high-precision voltage reference. Additionally, ensure that the output voltage is within the specified range and that the load current is within the recommended limits.
  • The maximum capacitance on the output of the AD569KNZ is 100 nF. Exceeding this value may cause instability or oscillations in the output voltage.
  • Yes, the AD569KNZ can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This configuration is useful in applications where the output voltage needs to track changes in the reference voltage.
  • To minimize noise and ripple on the output of the AD569KNZ, use a low-pass filter, such as a RC filter, and ensure that the output is properly decoupled with capacitors. Additionally, use a high-PSRR voltage reference and a low-noise power supply to reduce the noise and ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD569KNZ Overview

Use the download button to access the AD569KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD569, or try a keyword search, such as Digital to Analog Converters
