AD5700-1ACPZ-RL7 - Analog Devices

Description: Low Power HART Modem with Precision Internal Oscillator

Download AD5700-1ACPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

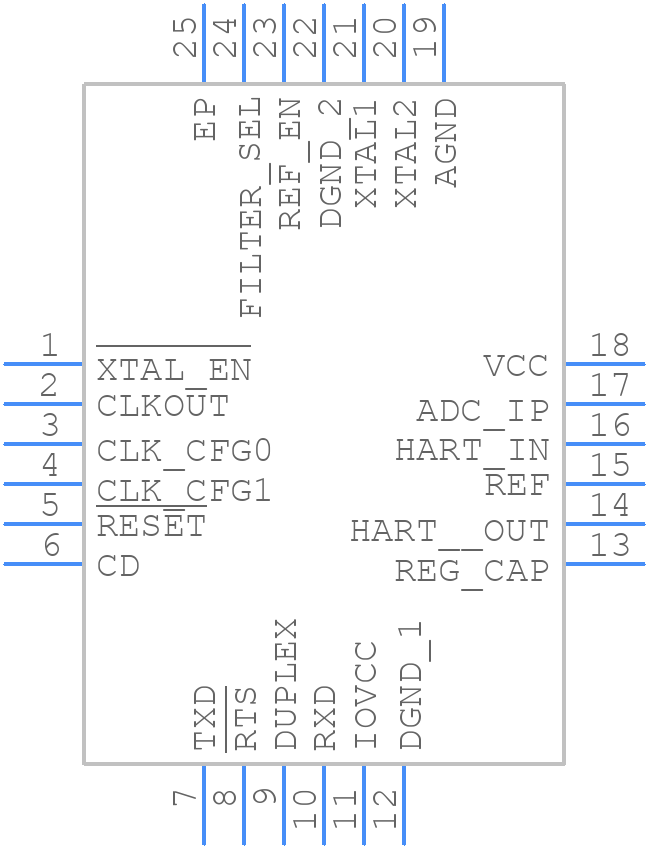

AD5700-1ACPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5700-1ACPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADA4937-2YCPZ-R7
click to zoom
3D Models
AD5700-1ACPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - ADA4937-2YCPZ-R7
click to zoom

AD5700-1ACPZ-RL7 Details

  • Manufacturer Part Number:

    AD5700-1ACPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    MODEM

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5700-1ACPZ-RL7 Frequently Asked Questions (FAQs)

  • The AD5700-1ACPZ-RL7 is a sensitive device and requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD5700-1ACPZ-RL7 requires calibration to achieve the highest accuracy. The calibration process involves adjusting the internal voltage reference and gain settings to match the specific application requirements. The datasheet provides a detailed calibration procedure, and it is recommended to follow it carefully to achieve the best results.
  • The AD5700-1ACPZ-RL7 is rated for operation over a temperature range of -40°C to +125°C. However, it is recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
  • The AD5700-1ACPZ-RL7 has a serial interface that can be easily interfaced with a microcontroller or FPGA. The datasheet provides detailed information on the interface protocol, including the serial clock frequency, data format, and synchronization requirements. It is recommended to follow the interface guidelines provided in the datasheet to ensure reliable communication.
  • The AD5700-1ACPZ-RL7 has a typical power consumption of 35 mW. To minimize power consumption in your design, it is recommended to use the device's power-down mode, reduce the clock frequency, and optimize the analog input range to minimize the power required for the analog-to-digital conversion process.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5700-1ACPZ-RL7 Overview

Use the download button to access the AD5700-1ACPZ-RL7 schematic symbol, PCB footprint, and 3D model.
