AD5700-1BCPZ-RL7 - Analog Devices

Description: Low Power HART Modem with Precision Internal Oscillator

Download AD5700-1BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

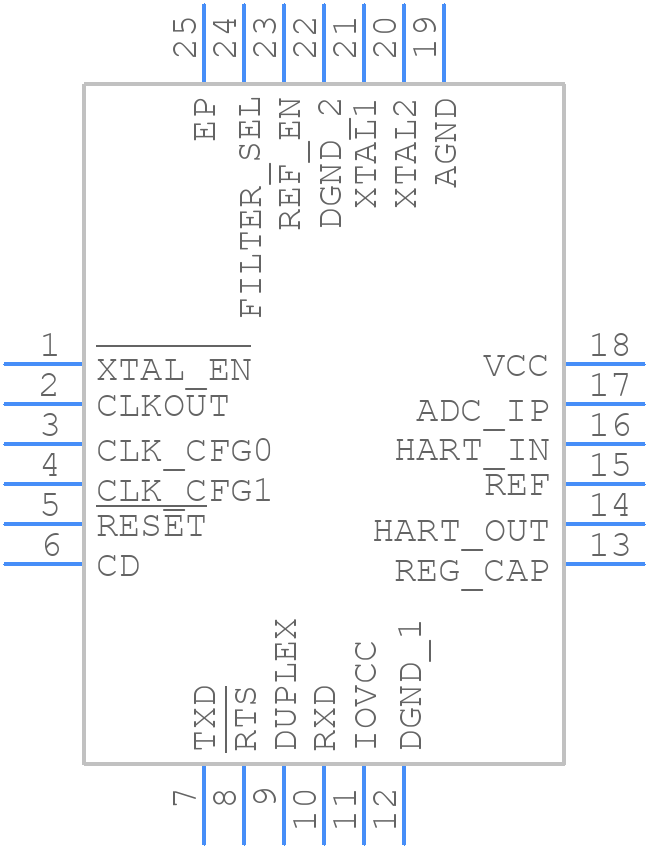

Symbol
AD5700-1BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5700-1BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10)
click to zoom
3D Models
AD5700-1BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10)
click to zoom

AD5700-1BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD5700-1BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    MODEM

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5700-1BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5700-1BCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the AD5700-1BCPZ-RL7 in noisy environments, use shielding, filtering, and grounding techniques. Use a metal shield around the device, add filters to the analog inputs, and ensure a low-impedance ground connection. Additionally, use a low-pass filter on the VCC pin to reduce noise.
  • The maximum cable length for the AD5700-1BCPZ-RL7's analog inputs depends on the specific application and noise environment. As a general guideline, keep the cable length as short as possible (less than 10 inches) to minimize noise pickup and signal degradation.
  • Calibrate the AD5700-1BCPZ-RL7 by following the calibration procedure outlined in the datasheet. This involves applying a known input voltage, measuring the output code, and adjusting the internal calibration registers to achieve optimal performance.
  • The recommended power-up sequence for the AD5700-1BCPZ-RL7 is to power up the VCC pin first, followed by the AVCC pin, and then the digital inputs. This ensures that the analog and digital circuits are properly initialized and reduces the risk of latch-up or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5700-1BCPZ-RL7 Overview

Use the download button to access the AD5700-1BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD570, or try a keyword search, such as Modems
