AD5721BRUZ - Analog Devices

Description: Digital to Analog Converters - DAC 12-BIT No Reference

Download AD5721BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

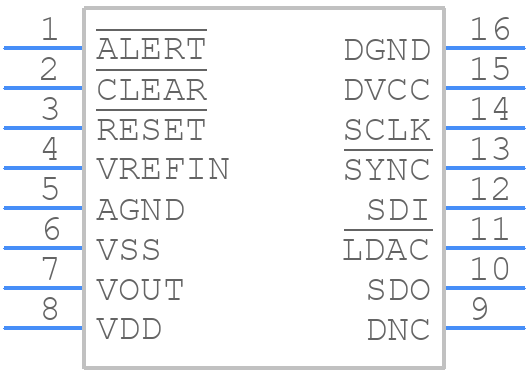

Symbol
AD5721BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5721BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16) Dimensions shown in millimeters
click to zoom
3D Models
AD5721BRUZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16) Dimensions shown in millimeters
click to zoom

AD5721BRUZ Details

  • Manufacturer Part Number:

    AD5721BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.5 V

  • Analog Output Voltage-Min:

    -10.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    9 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5721BRUZ Frequently Asked Questions (FAQs)

  • The AD5721BRUZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog-to-digital converter (ADC) and to use a ground plane to reduce noise. Additionally, the device should be placed away from high-frequency signals and switching regulators.
  • The AD5721BRUZ requires a one-time calibration process to ensure accurate output. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired output. The calibration process is typically done using a microcontroller or a dedicated calibration circuit.
  • The maximum output current of the AD5721BRUZ is 10 mA. Exceeding this current limit can cause the device to overheat and reduce its lifespan. It is recommended to use an external buffer amplifier or a voltage regulator to increase the output current if necessary.
  • The AD5721BRUZ has an internal voltage reference that can be used to generate the output voltage. However, the internal reference can be noisy and may affect the overall accuracy of the device. It is recommended to use an external voltage reference or to bypass the internal reference using an external capacitor.
  • The thermal shutdown temperature of the AD5721BRUZ is 150°C. If the device temperature exceeds this limit, it will shut down to prevent damage. It is recommended to provide adequate heat sinking and thermal management to prevent overheating.
