AD5721RBCPZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 12-BIT , 5ppm Reference

Download AD5721RBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

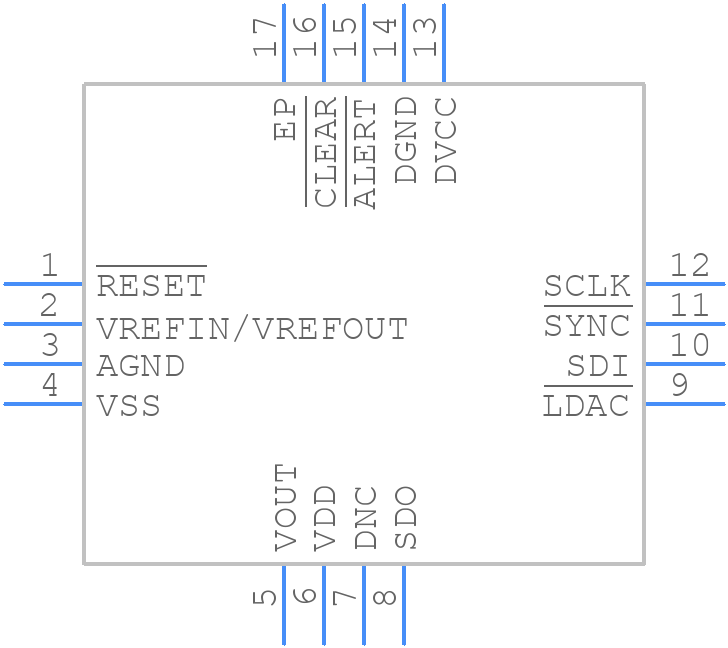

Symbol
AD5721RBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5721RBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)/2022
click to zoom
3D Models
AD5721RBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-22)/2022
click to zoom

AD5721RBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD5721RBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.5 V

  • Analog Output Voltage-Min:

    -10.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    9 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

AD5721RBCPZ-RL7 Frequently Asked Questions (FAQs)

  • The AD5721RBCPZ-RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD5721RBCPZ-RL7 requires calibration to achieve the highest accuracy. The calibration process involves adjusting the internal offset and gain trim registers to compensate for device variations. The calibration procedure is described in the datasheet and involves applying a known input voltage and adjusting the trim registers to achieve the desired output code.
  • The recommended power-up sequence for the AD5721RBCPZ-RL7 is to apply the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
  • The AD5721RBCPZ-RL7 has an internal clock that can be synchronized with an external clock source. To handle the internal clock and clock synchronization, it is recommended to follow the clocking guidelines provided in the datasheet, including using a stable clock source, ensuring proper clock synchronization, and avoiding clock glitches or jitter.
  • The AD5721RBCPZ-RL7 requires proper thermal management to prevent overheating. It is recommended to follow the thermal management guidelines provided in the datasheet, including using a heat sink, ensuring good airflow, and avoiding high ambient temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5721RBCPZ-RL7 Overview

Use the download button to access the AD5721RBCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD572, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
