AD5721RBRUZ - Analog Devices

Description: ANALOG DEVICES - AD5721RBRUZ - DAC, 12BIT, SPI, TSSOP-16

Download AD5721RBRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

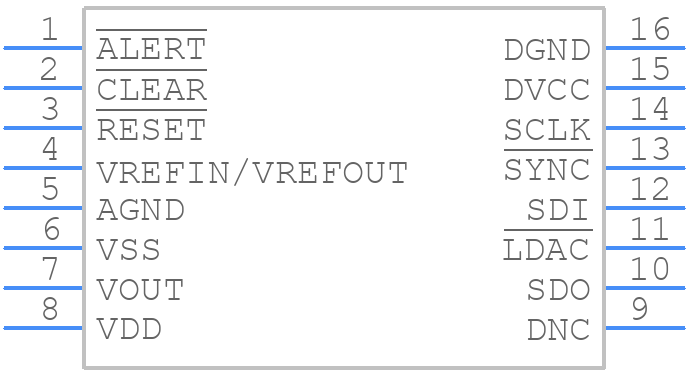

AD5721RBRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5721RBRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)_3
click to zoom
3D Models
AD5721RBRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)_3
click to zoom

AD5721RBRUZ Details

  • Manufacturer Part Number:

    AD5721RBRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.5 V

  • Analog Output Voltage-Min:

    -10.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    9 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5721RBRUZ Frequently Asked Questions (FAQs)

  • The AD5721RBRUZ is a high-precision device, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the device close to the analog signal sources. Additionally, decoupling capacitors should be placed as close to the device as possible to minimize noise and ensure optimal performance.
  • The AD5721RBRUZ has a built-in calibration mechanism that allows for self-calibration. To calibrate the device, apply a known input voltage to the device and use the CAL pin to initiate the calibration process. The device will then adjust its internal gain and offset to achieve the highest accuracy. It is recommended to calibrate the device at multiple temperatures to ensure optimal performance across the entire operating range.
  • The recommended power-up sequence for the AD5721RBRUZ is to first apply the analog power supply (VCC) followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction. It is also recommended to add a power-on reset circuit to ensure that the device is properly reset during power-up.
  • The AD5721RBRUZ outputs a 24-bit digital signal that requires proper handling to ensure accurate and reliable measurements. It is recommended to use a first-in, first-out (FIFO) buffer to handle the output data, and to use a digital filter to remove any noise or glitches. Additionally, it is recommended to use a microcontroller or DSP with a high-speed interface, such as SPI or I2C, to handle the output data.
  • The AD5721RBRUZ is a high-power device that requires proper thermal management to prevent overheating and ensure reliability. It is recommended to use a heat sink or thermal pad to dissipate heat, and to ensure good airflow around the device. Additionally, it is recommended to operate the device within its recommended operating temperature range and to avoid exposing it to extreme temperatures or thermal shocks.
