AD5724AREZ - Analog Devices

Description: AD5724AREZ, 12 bit-Bit DAC Quad 100ksps, SPI, Microwire, 24-Pin TSSOP EP

Download AD5724AREZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

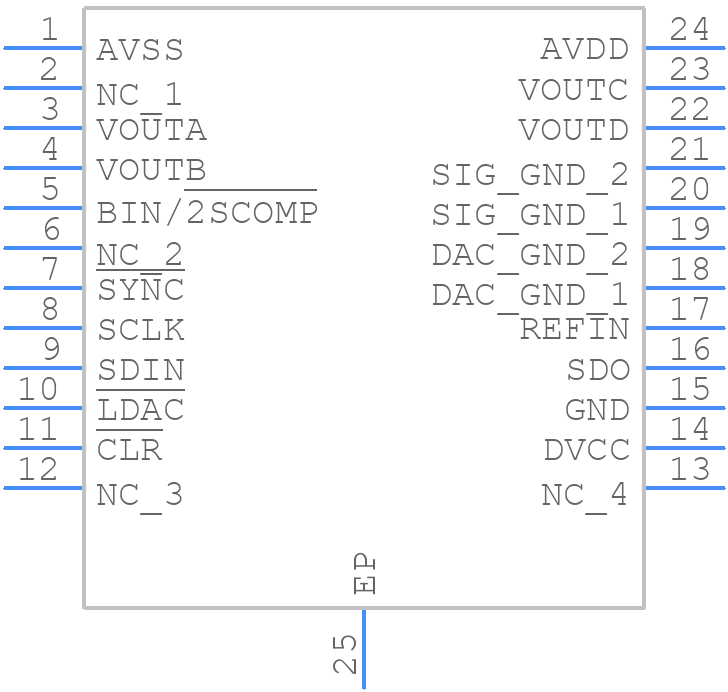

AD5724AREZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5724AREZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RE-24 (TSSOP)
click to zoom
3D Models
AD5724AREZ - Analog Devices - 3D model - Small Outline Packages - RE-24 (TSSOP)
click to zoom

AD5724AREZ Details

  • Manufacturer Part Number:

    AD5724AREZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153ADT, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RE-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.8 V

  • Analog Output Voltage-Min:

    -10.8 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    12 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5724AREZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • To ensure accuracy, calibrate the device at multiple temperatures, and use a temperature sensor to compensate for temperature-related errors. Also, use a high-precision voltage reference and ensure that the device is operated within its specified temperature range.
  • The recommended power-up sequence is to apply the analog power supply (AVCC) first, followed by the digital power supply (DVCC), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry.
  • Use a FIFO or a buffer to handle the output data, and ensure that the data is read at a rate that is at least twice the conversion rate. Also, use a CRC or checksum to ensure data integrity, and consider using a digital filter to remove noise and artifacts.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the input signals. Also, use a common-mode choke on the power supply lines and ensure that the device is operated in a low-impedance environment.
