AD5725ARSZ-1500RL7 - Analog Devices

Description: Digital to Analog Converters - DAC Quad 12Bit DAC 1 LSB INL RESET TO ZERO 8

Download AD5725ARSZ-1500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

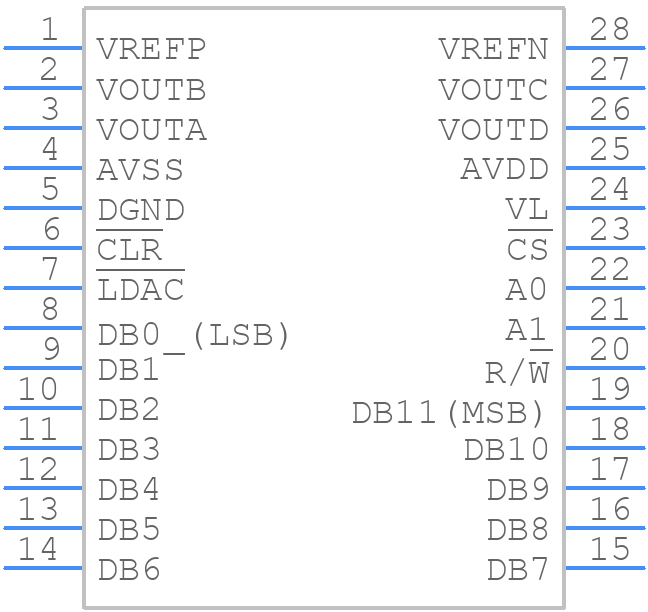

Symbol
AD5725ARSZ-1500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5725ARSZ-1500RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28
click to zoom
3D Models
AD5725ARSZ-1500RL7 - Analog Devices - 3D model - Small Outline Packages - RS-28
click to zoom

AD5725ARSZ-1500RL7 Details

  • Manufacturer Part Number:

    AD5725ARSZ-1500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD5725ARSZ-1500RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • To ensure accuracy, use a high-precision voltage reference, such as the ADR4520, and ensure that the input voltage is within the specified range. Also, use a low-noise, low-temperature-coefficient resistor for the output voltage divider.
  • The recommended power-up sequence is to apply the analog power supply (AVCC) first, followed by the digital power supply (DVCC), and then the input voltage (VIN). This ensures that the internal voltage regulators are powered up correctly.
  • The AD5725ARSZ-1500RL7 can source up to 10mA of output current. To handle this, use a buffer amplifier or an op-amp with a high output current capability to drive the load. Also, ensure that the output voltage is within the specified range to avoid overheating.
  • The AD5725ARSZ-1500RL7 has a thermal pad that must be connected to a thermal plane or a heat sink to dissipate heat. Ensure that the thermal pad is connected to a copper plane or a heat sink with a thermal conductivity of at least 1W/m-K.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5725ARSZ-1500RL7 Overview

Use the download button to access the AD5725ARSZ-1500RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD572, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
