AD5725ARSZ-REEL - Analog Devices

Description: Digital to Analog Converters - DAC IC Quad 12-Bit VTG Output

Download AD5725ARSZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

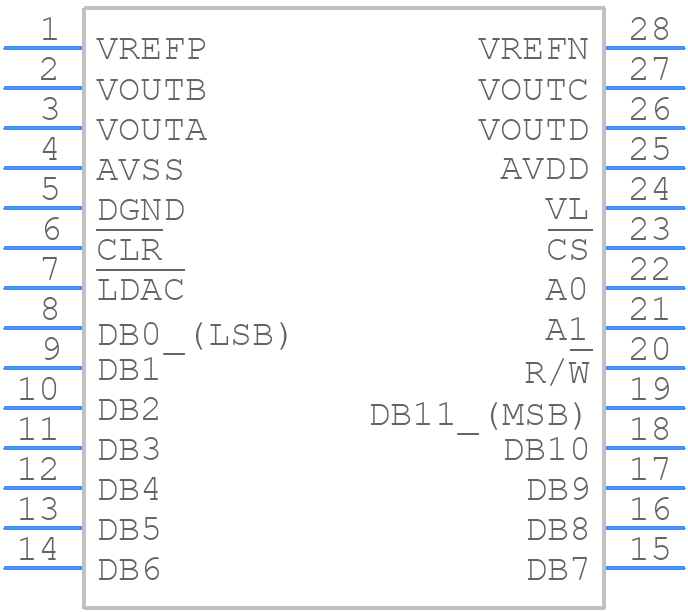

Symbol
AD5725ARSZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5725ARSZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ssop-1
click to zoom
3D Models
AD5725ARSZ-REEL - Analog Devices - 3D model - Small Outline Packages - ssop-1
click to zoom

AD5725ARSZ-REEL Details

  • Manufacturer Part Number:

    AD5725ARSZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD5725ARSZ-REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • To ensure accuracy and stability, it's essential to follow proper calibration and trimming procedures, use a stable and low-noise power supply, and minimize thermal gradients. Also, consider using a temperature sensor to monitor the device temperature and compensate for any temperature-related errors.
  • To minimize EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the input signals. Also, consider using a common-mode choke on the power supply lines and a shielded cable for the analog output.
  • To troubleshoot issues, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check for noise on the output and ensure the output is not overloaded. If issues persist, consult the datasheet and application notes for guidance.
  • The AD5725ARSZ-REEL is a 16-bit, 250 kSPS, unipolar, and single-supply DAC with an integrated voltage reference. It's differentiated from other devices by its high accuracy, low noise, and high-speed conversion rate. Compare the datasheets of similar devices to determine the best fit for your specific application.
