AD5725BRSZ-500RL7 - Analog Devices

Description: Digital to Analog Converters - DAC IC Quad 12-Bit VTG Output

Download AD5725BRSZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

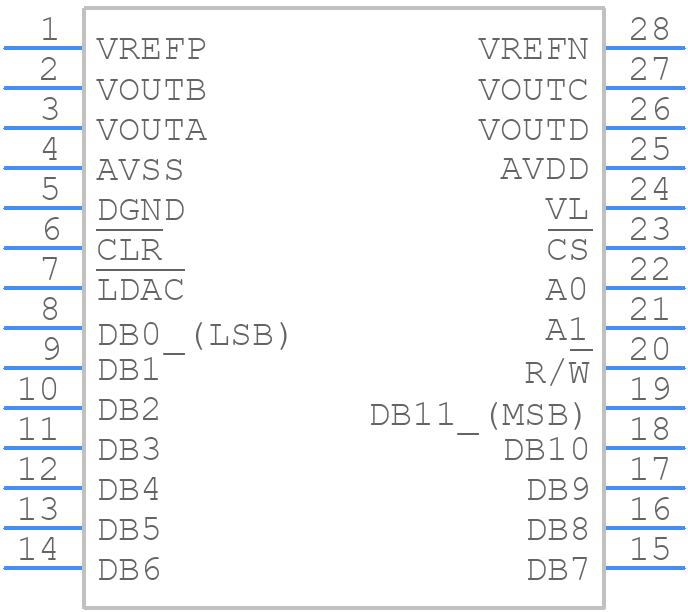

AD5725BRSZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5725BRSZ-500RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ssop
click to zoom
3D Models
AD5725BRSZ-500RL7 - Analog Devices - 3D model - Small Outline Packages - ssop
click to zoom

AD5725BRSZ-500RL7 Details

  • Manufacturer Part Number:

    AD5725BRSZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD5725BRSZ-500RL7 Frequently Asked Questions (FAQs)

  • The AD5725BRSZ-500RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD5725BRSZ-500RL7 requires calibration to achieve the highest accuracy. The calibration process involves adjusting the internal calibration registers to compensate for offset and gain errors. The calibration procedure is described in the datasheet, and it is recommended to follow the procedure carefully to achieve the highest accuracy.
  • The recommended power-up sequence for the AD5725BRSZ-500RL7 is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This sequence helps to prevent damage or malfunction due to voltage sequencing issues.
  • The AD5725BRSZ-500RL7 requires proper thermal management to prevent overheating. It is recommended to provide adequate heat sinking, such as a thermal pad or heat sink, and to ensure good airflow around the device. The maximum junction temperature (TJ) should not exceed 150°C.
  • The AD5725BRSZ-500RL7 is a sensitive device and requires proper ESD protection to prevent damage from electrostatic discharge. It is recommended to use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to prevent damage from ESD events.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5725BRSZ-500RL7 Overview

Use the download button to access the AD5725BRSZ-500RL7 schematic symbol, PCB footprint, and 3D model.
