AD5725BRSZ-REEL - Analog Devices

Description: DAC 4-CH R-2R 12-bit Automotive 28-Pin SSOP T/R

Download AD5725BRSZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

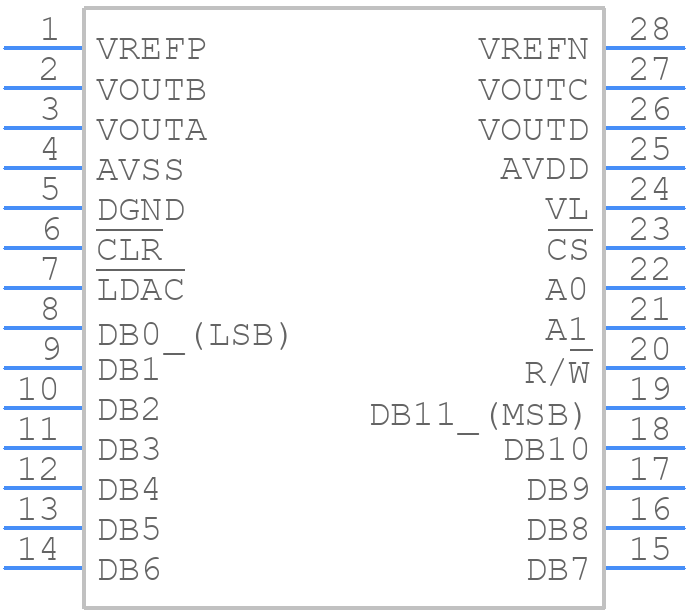

Symbol
AD5725BRSZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5725BRSZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)-
click to zoom
3D Models
AD5725BRSZ-REEL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)-
click to zoom

AD5725BRSZ-REEL Details

  • Manufacturer Part Number:

    AD5725BRSZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD5725BRSZ-REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • To ensure accuracy and stability, it's essential to follow proper calibration and trimming procedures, use a stable and low-noise power supply, and minimize thermal gradients on the PCB. Also, consider using a temperature sensor to monitor the device temperature and compensate for any temperature-related drift.
  • To minimize EMI and RFI, use a shielded enclosure, keep the AD5725BRSZ-REEL away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Also, ensure good PCB layout practices, such as using a solid ground plane and minimizing signal loop areas.
  • To troubleshoot issues, start by verifying the power supply and input signals, then check the output values using an oscilloscope or logic analyzer. Also, review the PCB layout and routing to ensure they meet the recommended practices. If issues persist, consult the datasheet and application notes or contact Analog Devices' support team.
  • The main differences lie in the resolution, accuracy, and output range. The AD5725BRSZ-REEL is a 16-bit DAC with a ±10V output range, while the AD5726 is a 14-bit DAC with a ±5V output range, and the AD5730 is a 16-bit DAC with a ±15V output range. Choose the product that best fits your specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5725BRSZ-REEL Overview

Use the download button to access the AD5725BRSZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD572, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
