AD5726YRSZ-REEL - Analog Devices

Description: ANALOG DEVICES - AD5726YRSZ-REEL. - DIGITAL TO ANALOG CONVERTER DAC, 12 BIT, SSOP-16

Download AD5726YRSZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

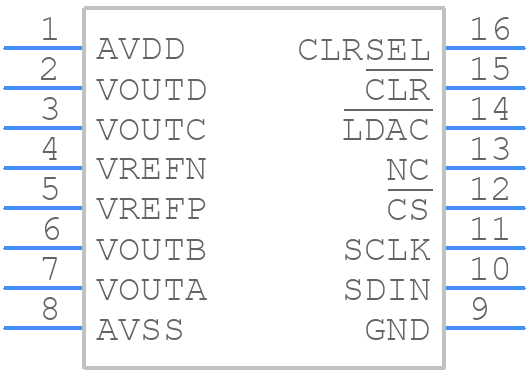

AD5726YRSZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5726YRSZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-16
click to zoom
3D Models
AD5726YRSZ-REEL - Analog Devices - 3D model - Small Outline Packages - RS-16
click to zoom

AD5726YRSZ-REEL Details

  • Manufacturer Part Number:

    AD5726YRSZ-REEL

  • Source Url Status Check Date:

    2013-05-01 14:56:14.54

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RS-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Max:

    13 µs

  • Settling Time-Nom (tstl):

    13 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

AD5726YRSZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5726YRSZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The AD5726YRSZ-REEL has an internal calibration mechanism, but it may require additional calibration for specific applications. It's recommended to follow the calibration procedure outlined in the datasheet and to use the AD5726 evaluation board as a reference. Additionally, users can use the AD5726's internal self-calibration feature to adjust the device's gain and offset.
  • The AD5726YRSZ-REEL has an operating temperature range of -40°C to +125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to +85°C for optimal performance.
  • The AD5726YRSZ-REEL has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. The device requires a 3.3V or 5V power supply, and the interface voltage can be set using the VIO pin. It's recommended to use a level shifter or voltage translator if the microcontroller or FPGA operates at a different voltage level.
  • The typical power consumption of the AD5726YRSZ-REEL is around 30mA at 3.3V and 50mA at 5V. However, the power consumption can vary depending on the device's configuration, operating frequency, and output load. It's recommended to consult the datasheet and to perform power consumption measurements in the specific application.
