AD5750-1ACPZ-REEL - Analog Devices

Description: Industrial Current/Voltage Output Driver with Programmable Ranges

Download AD5750-1ACPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

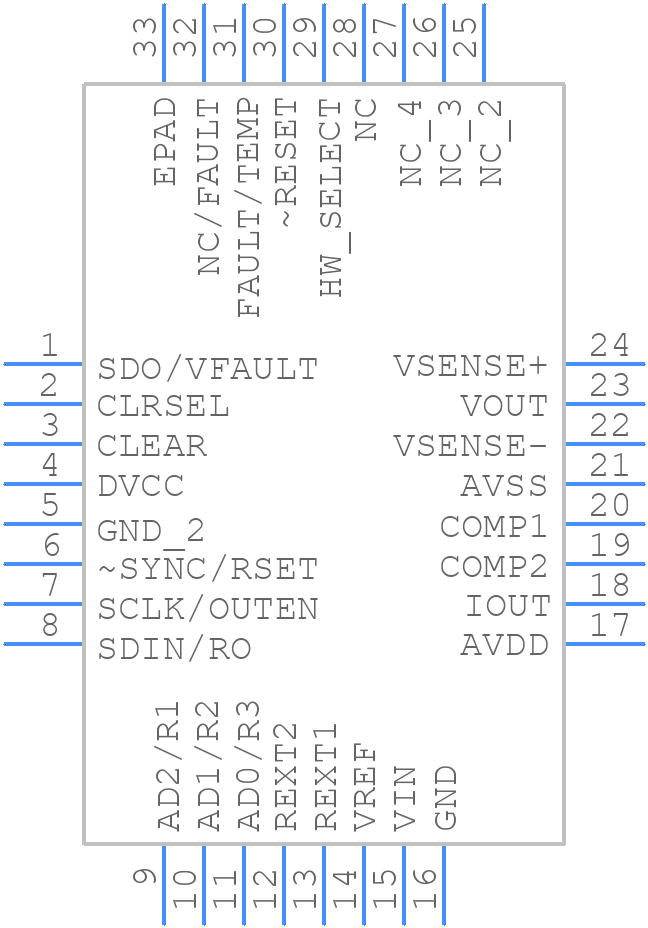

Symbol
AD5750-1ACPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5750-1ACPZ-REEL - Analog Devices PCB footprint - Other - Other - QFN50P500X500X100-33N
click to zoom
3D Models
AD5750-1ACPZ-REEL - Analog Devices - 3D model - Other - QFN50P500X500X100-33N
click to zoom

AD5750-1ACPZ-REEL Details

  • Manufacturer Part Number:

    AD5750-1ACPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Built-in Protections:

    TRANSIENT; OVER CURRENT

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    0.015 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD5750-1ACPZ-REEL Frequently Asked Questions (FAQs)

  • The recommended power-up sequence for the AD5750 is to power up the VDD supply first, followed by the AVDD supply, and then the DVDD supply. This ensures that the internal voltage regulators are powered up in the correct order.
  • During power-down, the output voltage of the AD5750 can be undefined. To avoid this, it is recommended to use an external voltage clamp or a load switch to ensure that the output voltage is defined and safe for the load.
  • The maximum output current of the AD5750 is 20 mA per channel. However, this can be limited by the internal voltage regulators and the power dissipation of the device. It is recommended to check the power dissipation calculations and thermal management to ensure that the device can handle the required output current.
  • The AD5750 has an internal calibration mechanism that can be used to optimize its performance. The calibration process involves writing specific values to the device's registers to adjust the gain, offset, and linearity of the output voltage. The calibration process is described in the device's datasheet and application notes.
  • The recommended layout and routing for the AD5750 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the traces between the device and the load. It is also recommended to use a low-ESR capacitor for the AVDD and DVDD supplies to ensure stable operation.
