AD5750-1ACPZ-REEL7 - Analog Devices

Description: Industrial Current/Voltage Output Driver with Programmable Ranges

Download AD5750-1ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

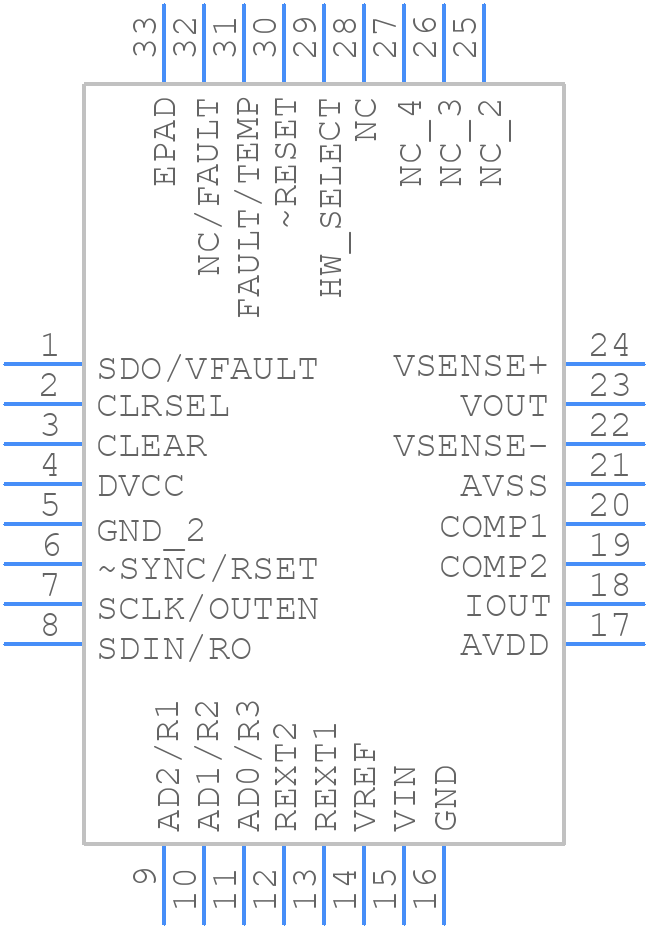

AD5750-1ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5750-1ACPZ-REEL7 - Analog Devices PCB footprint - Other - Other - QFN50P500X500X100-33N
click to zoom
3D Models
AD5750-1ACPZ-REEL7 - Analog Devices - 3D model - Other - QFN50P500X500X100-33N
click to zoom

AD5750-1ACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD5750-1ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Built-in Protections:

    TRANSIENT; OVER CURRENT

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    0.015 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD5750-1ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD), and then the clock signal. This ensures proper initialization of the device.
  • The output voltage settling time can be handled by inserting a delay of at least 10 μs between the output range change command and the next output voltage update. This allows the output voltage to settle to the new range.
  • The maximum capacitance that can be driven by the AD5750-1ACPZ-REEL7 output is 10 nF. Exceeding this capacitance may affect the output voltage settling time and stability.
  • To ensure accurate output voltage when using an external reference voltage, make sure to buffer the reference voltage with a low-noise, high-impedance buffer amplifier, and ensure that the reference voltage is within the specified range of 2.5 V to 5.5 V.
  • The recommended layout and routing for the AD5750-1ACPZ-REEL7 involves separating the analog and digital signal paths, using a solid ground plane, and minimizing the length of the output traces to reduce noise and ensure reliable operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD5750-1ACPZ-REEL7 Overview

Use the download button to access the AD5750-1ACPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD575, or try a keyword search, such as Peripheral Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
